In order to add monitoring feature to Eclipse PTP on “K” computer I am working on a customised LML-layout. For tests I use a smaller sibling of “K” named “FX10”.
I customised the perl scripts and layout description file (samples/layout_default_PJM.xml), and now in the monitoring perspective I can see a table with the jobs running on the computer. Nodes layout that I created with nodedisplaylayout tag is displayed correctly.
What I can’t figure out is how I can map jobs to the nodes layout. There is information on the nodes used by every job in the jobs table, but I’m not sure if its format is correct.

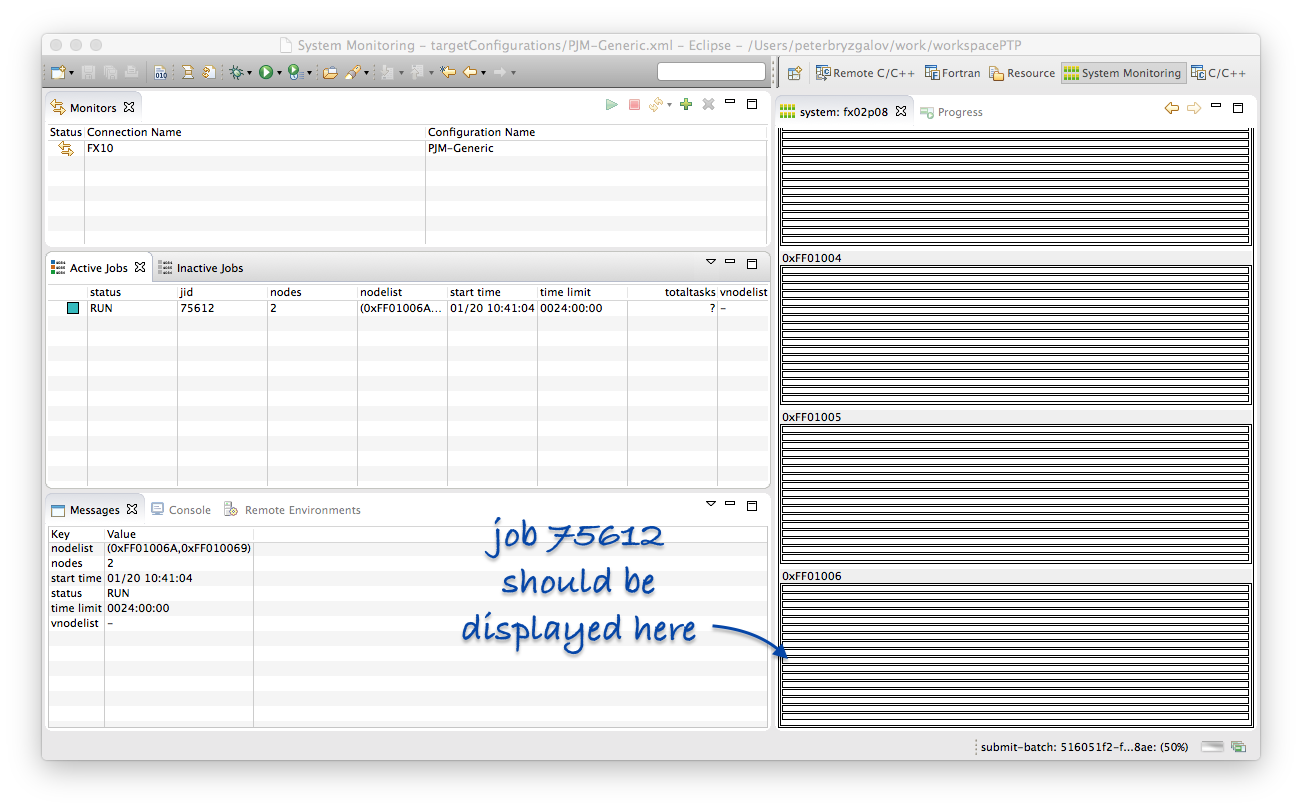

Here is what I see: Job 75612 is not displayed on the nodes layout.
In temporary files directory in datastep_LML2LML.xml file I have:
<nodedisplay id="nd_1" title="system: fx02p08"> <scheme> <el1 tagname="chassis" min="0" max="6" mask="0xFF0100%01d"> <el2 tagname="node" min="0" max="16" mask="%01x"> </el2> </el1> </scheme> <data> <el1 oid="empty" min="0" max="6"> </el1> </data> </nodedisplay>
<data> is empty and so no job is displayed in nodes layout.
By the way, nodes are numerated with hexadecimal numbers. Is it OK to use mask “%01x” ?
Kind regards, Peter
On 19 Jan, 2015, at 18:13, Carsten Karbach <c.karbach@xxxxxxxxxxxxx> wrote:
Dear Peter,
thanks for the hint on the broken link. It was moved to http://llview.fz-juelich.de/LML/OnlineDocumentation/lmldoc.html. I have updated the documentation page with the new link. On the LML documentation page you can find a section about LML layout files, which is located at http://llview.fz-juelich.de/LML/OnlineDocumentation/layouts.html.
There are also some layout examples integrated into PTP. You can find them at http://git.eclipse.org/c/ptp/org.eclipse.ptp.git/tree/rms/org.eclipse.ptp.rm.jaxb.contrib/data. E.g. take a look at the configuration files de.fz-juelich.judge.torque.batch.xml, de.fz-juelich.juqueen.ll_bg.xml or de.fz-juelich.juropa.torque.batch.xml. They all contain <monitor-data> elements, which represent the layout definitions for each site.
See also https://wiki.eclipse.org/images/7/7e/Carsten-Karbach-31july2013-Slides.pdf for an introduction to creating your own monitoring layouts.
Regarding your first question: A summary on the monitoring architecture is given in the presentation here: https://wiki.eclipse.org/images/d/d0/PTPUserDev2012_Monitoring_Karbach_Frings.pdf. When you need to develop your own batch system adapter, you basically have to write scripts for gathering three types of data: jobs, nodes and global system information. You have to write one script for each of these types, where each script generates an LML file. All subsequent steps of LML_da should be handled automatically. Find examples for these scripts for all supported batch systems at http://git.eclipse.org/c/ptp/org.eclipse.ptp.git/tree/rms/org.eclipse.ptp.rm.lml.da/rms.
Best regards,
Carsten
On 01/19/15 09:05, Peter Bryzgalov wrote:
Hi,
I work on adopting Eclipse PTP to “K” computer and its PJM batch system made by Fujitsu. I have a basic job running and profiling with TAU features working. Now I'm working on monitoring. I have very basic understanding of workflow and LML. Where can I find specifications and examples of what output files should look like on every step of the workflow? I also need instructions on creating a layout definition file.
There is a link on wiki.eclipse.org/PTP/designs/scalability <http://wiki.eclipse.org/PTP/designs/scalability> to LML specification. Unfortunately http://llview.zam.kfa-juelich.de site is not working.
Kind regards, Peter Bryzgalov
RIKEN AICS HPC Usability Research Team Research Scientist
