Re: Re: [ptp-user] Some problems with RDT
|
I have looked over the bug description. Since the descriptions show that
this would be solved in the next version RSE, I have not changed anything.
And the result is still the same. Also I have noticed the latest description
which shows the confusion. The attached file is the "Installed Software" of my
eclipse, I hope this would help.
Regards,
Wenfu Lv
Is it working for you now, or are you still
having problems?
Regards,
Greg
On Apr 12, 2009, at 10:34 PM, 吕文赋 wrote:
Hi,
My Eclipse version is (Version: 3.4.2 Build id: M20090211-1700); RSE
version is 3.0.3.v200902042310, PTP version is 2.1.1.200903061902.
The mistake I made which resulted in the question I mentioned is that
when I start the rdt-server, I ignored the command "su -l root". I hope this
would be a helpful experience.
Wenfu lv
2009/4/10 Greg Watson
<g.watson@xxxxxxxxxxxx>
Hi,
Can you please let me know which version of Eclipse, RSE, and PTP you
are using?
Thanks,
Greg
On Apr 6, 2009, at 8:01 AM, 吕文赋 wrote:
Hi, Beth
After a careful check, I think I have found the mistake I made, and
now I can use the RDT with PTP very well. I try to creat a
helloworld MPI project with OpenMPI 1.2.8, build and launch it with
argument "-np 4". Everything seems fine except a error with
a message:
"Failed after executing command to launch parallel
application.
Failed to parse output of Open MPI command. Check
output for errors.
Invalid output from Open MPI:
Mapped proc:
"
and the output of the project is as
follow:
[test239:07071] Map for job: 1 Generated by mapping mode:
byslot
Starting vpid: 0 Vpid range: 4 Num
app_contexts: 1
Data for app_context: index 0 app:
/root/workspace3/helloworld
Num procs:
4
Argv[0]:
/root/workspace3/helloworld
Env[0]:
OMPI_MCA_rmaps_base_display_map=1
Env[1]:
OMPI_MCA_orte_precondition_transports=61e53a6bed7781f6-c733502a25d08a16
Env[2]:
OMPI_MCA_rds=proxy
Env[3]:
OMPI_MCA_ras=proxy
Env[4]:
OMPI_MCA_rmaps=proxy
Env[5]:
OMPI_MCA_pls=proxy
Env[6]:
OMPI_MCA_rmgr=proxy
Working dir: /root/workspace3
(user: 0)
Num maps: 0
Num elements in
nodes list: 1
Mapped node:
Cell:
0 Nodename: test239 Launch id: -1 Username:
NULL
Daemon name:
Data type:
ORTE_PROCESS_NAME Data Value:
NULL
Oversubscribed: True Num elements in procs
list: 4
Mapped proc:
Proc
Name:
Data type: ORTE_PROCESS_NAME Data
Value: [0,1,0]
Proc Rank: 0 Proc PID:
0 App_context index: 0
Mapped
proc:
Proc
Name:
Data type: ORTE_PROCESS_NAME Data
Value: [0,1,1]
mpirun -display-map -np 4
/root/workspace3/helloworld;exit
Proc Rank: 1 Proc PID:
0 App_context index: 0
Mapped
proc:
Proc
Name:
Data type: ORTE_PROCESS_NAME Data
Value: [0,1,2]
Proc Rank: 2 Proc PID:
0 App_context index: 0
Mapped
proc:
Proc
Name:
Data type: ORTE_PROCESS_NAME Data
Value: [0,1,3]
Proc Rank: 3 Proc PID:
0 App_context index: 0
Hello MPI Pi World From process 0: Num
processes: 4
Hello MPI Pi World from process 1!
Hello MPI Pi World
from process 2!
Hello MPI Pi World from process 3!
> Shell
Completed (exit code = 0)
My target platform is a single
server with Redhat AS5, and my resource manager uses a connection of RSE
which is the same connection through which files are stored on the same
server. And I tried the command:
"mpirun -display-map -np 4 /root/workspace3/helloworld"
on the target server, the result seems fine.
Is there any advice?
It looks like you have an older version of RDT (Your
installed software image shows it from Nov. 3)
Please install the
latest release of PTP and RDT (2.1.1) and see if that helps.
The
downloads page at
http://www.eclipse.org/ptp/downloads.php points you to
the update site at
http://download.eclipse.org/tools/ptp/releases/2.1/
should give you 2.1.1 (from March 6)
or you can download the archived
site also referenced on the downloads page.
Let us know how you
fare.
...Beth
Beth Tibbitts (859) 243-4981 (TL
545-4981)
Eclipse Parallel Tools Platform
http://eclipse.org/ptpMailing Address: IBM Corp.,
Coldstream Research Campus, 745 West New Circle Road, Lexington, KY
40511
<graycol.gif>"Wenfu.lv" ---03/30/2009 04:47:22 AM---Hi, all When I
install PTP with RDT, I find something I cannot understand in this
component whose function is supposed to be so
|
|
|
<ecblank.gif>
To |
<ecblank.gif>
|
|
<ecblank.gif>
cc |
<ecblank.gif>
|
|
<ecblank.gif>
Subject |
<ecblank.gif>
[ptp-user] Some problems with
RDT
|
<ecblank.gif> |
<ecblank.gif> | |
Hi, allWhen I install PTP with RDT, I find something I cannot understand
in this component whose function is supposed to be so excellent.
I
follow the install instructions of http://wiki.eclipse.org/PTP/release_notes/2.1, with a fresh eclipse-SDK-3.4.2-win32 package and a
new workspace, and I find that if I add the RDT component, I can not
creat a RSE connection correctly. I test for several times, every time
the result is the same. Then I try uninstall the RDT component, the RSE
connection works well again.
Picture 1 (NoRDT_Files_Processes.jpg) is
the connection result without RDT, which seems nothing wrong.
2 (withRDT.jpg) is the connection result with RDT, the progress bar
shows "Fetching children of My Home: (100%)", but nothing is shown in
the subfolder of "My Home". After a long time, the result is like
picture 3 (withRDT2.jpg). And the result is the same with subsystems:
"Files" with "My Home", "Root"; "Processes" with "All Processes", "My
Processes".
The difference of the subsystem of "Shells" is like
picture 4 (NoRDT_Remote_Shells.jpg) and picture 5
(withRDT_Shells.jpg).
The "Ssh Terminals" subsystem seems nothing
different.
And what is most misunderstanding, the subsystem of
"Remote C/C++ Indexing Subsystem", which is only shown with RDT, has no
children, like picture 6(indexingSubsystem.jpg).
Picture 7 (Installed
software.jpg) shows plugins I install.So, I am not very clear what
is wrong. Is this a bug? I promise that the only difference between
these two cases is that one has RDT installed but the other
not. Wenfu Lv[attachment "NoRDT_Files_Processes.JPG" deleted by Beth
Tibbitts/Watson/IBM] [attachment "withRDT.JPG" deleted by Beth
Tibbitts/Watson/IBM] [attachment "withRDT2.JPG" deleted by Beth
Tibbitts/Watson/IBM] [attachment "NoRDT_Remote_Shells.JPG" deleted by
Beth Tibbitts/Watson/IBM] [attachment "withRDT_Shells.JPG" deleted by
Beth Tibbitts/Watson/IBM] [attachment "indexingSubsystem.JPG" deleted by
Beth Tibbitts/Watson/IBM] [attachment "Installed software.JPG" deleted
by Beth Tibbitts/Watson/IBM]
_______________________________________________
ptp-user
mailing list
ptp-user@xxxxxxxxxxx
https://dev.eclipse.org/mailman/listinfo/ptp-user
_______________________________________________
ptp-user
mailing list
ptp-user@xxxxxxxxxxx
https://dev.eclipse.org/mailman/listinfo/ptp-user
_______________________________________________
ptp-user
mailing list
ptp-user@xxxxxxxxxxx
https://dev.eclipse.org/mailman/listinfo/ptp-user
Attachment:

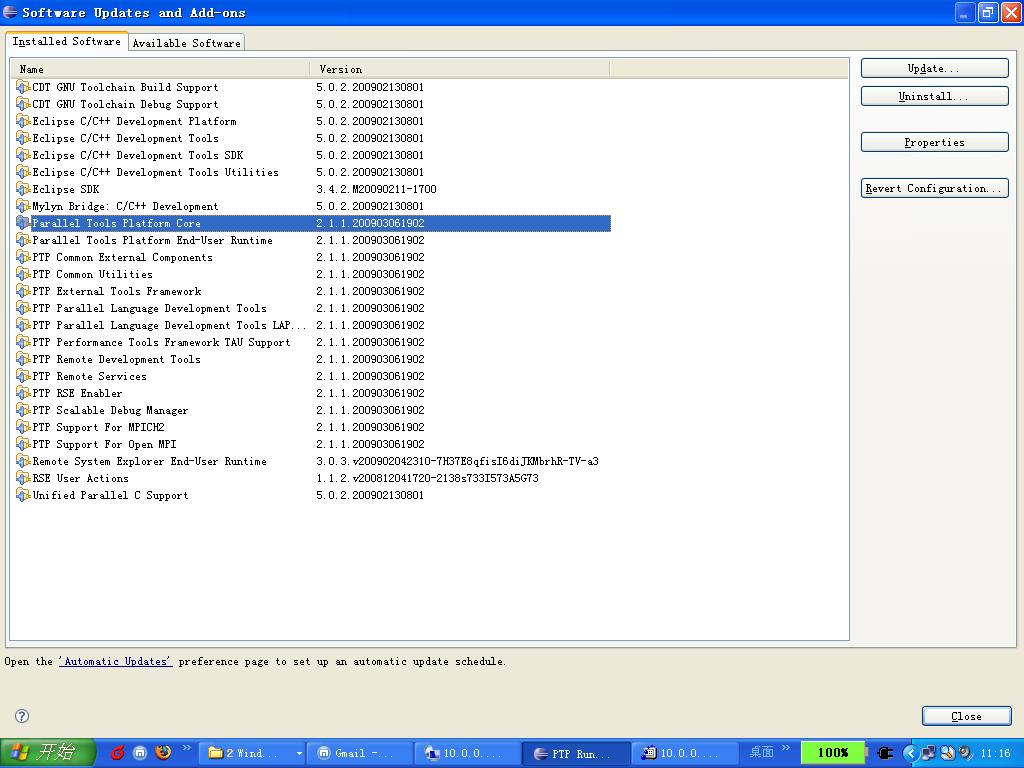

Software Updates and Add-ons.JPG
Description: JPEG image
