Re: [platform-swt-dev] GridLayout (w/Table) and vertical alignment problems
|
Robert,
In the future please ask user questions
on the eclipse.swt newsgroup in the future; this list is for discussions
related to the development of swt.
You need to add the following:
buttons.setLayoutData(
new GridData(GridData.VERTICAL_ALIGN_BEGINNING));
Grant
rjohnson2@xxxxxxxxxxxxxxx
Sent by: platform-swt-dev-admin@xxxxxxxxxxx
02/23/2004 04:23 PM
Please respond to
platform-swt-dev |
|
To
| platform-swt-dev@xxxxxxxxxxx
|
cc
|
|
Subject
| [platform-swt-dev] GridLayout
(w/Table) and vertical alignment problems |
|
I'm trying to create a screen using a GridLayout with two columns. On
the left column I want three vertical buttons and on the right column I
want a Table. My problem is that I cannot get the buttons to align
with the top of the Table. They always align with the center of the

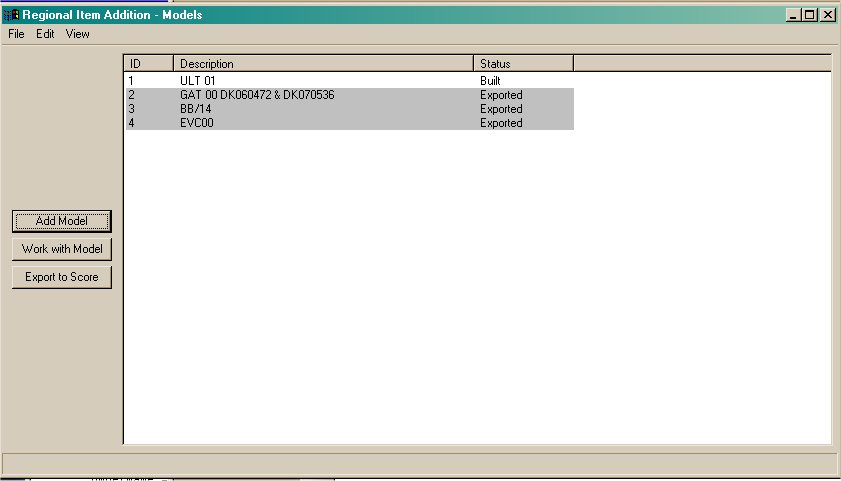

table no matter what I try. Below is my code and I have attached
a screenshot of the screen. Thanks for the help.
---------------------------------------
public Control createContents(Composite parent)
{
Composite composite = new Composite(parent,
SWT.NONE);
GridLayout layout = new GridLayout();
layout.numColumns = 2;
composite.setLayout(layout);
Composite buttons = new Composite(composite,
SWT.NONE);
GridLayout buttonLayout = new GridLayout();
buttonLayout.numColumns = 1;
buttons.setLayout(buttonLayout);
Button button = new Button(buttons, SWT.PUSH);
button.setText("Add Model");
GridData data = "" GridData();
data.widthHint = 100;
button.setLayoutData(data);
button = new Button(buttons, SWT.PUSH);
button.setText("Work with Model");
data = "" GridData();
data.widthHint = 100;
button.setLayoutData(data);
button = new Button(buttons, SWT.PUSH);
button.setText("Export to Score");
data = "" GridData();
data.widthHint = 100;
button.setLayoutData(data);
final TableViewer tbv =
new TableViewer(composite, SWT.BORDER | SWT.FULL_SELECTION | SWT.MULTI);
tbv.setContentProvider(new TableCP());
tbv.setLabelProvider(new TableLP(composite.getDisplay()));
GridData gridData = new GridData();
gridData.horizontalAlignment = GridData.FILL;
gridData.grabExcessHorizontalSpace = true;
gridData.grabExcessVerticalSpace = true;
gridData.verticalAlignment = GridData.FILL;
tbv.getTable().setLayoutData(gridData);
TableColumn column = new TableColumn(tbv.getTable(),
SWT.LEFT);
column.setText("ID");
column.setWidth(50);
column = new TableColumn(tbv.getTable(), SWT.LEFT);
column.setText("Description");
column.setWidth(300);
column = new TableColumn(tbv.getTable(), SWT.LEFT);
column.setText("Status");
column.setWidth(100);
tbv.getTable().setHeaderVisible(true);
return composite;
}
------------------------------------------------------------
Robert Johnson
Oreilly Automotive, Inc.
Information Systems - Internet Team
417-862-2674 x1878
Attachment:
Description: JPEG image
