[papyrus-ic] Import from RSA: graphical rendering

[Michel Besson <mbesson@xxxxxxxxxxx>]

Hi all,

When importing a model from RSA to Papyrus, I have issues with the rendering of class diagrams.

The associations seem not to be displayed correctly.

This issue had been identified back in 2016 already.

Has it been resolved since (I tried recently with the latest version of Papyrus).

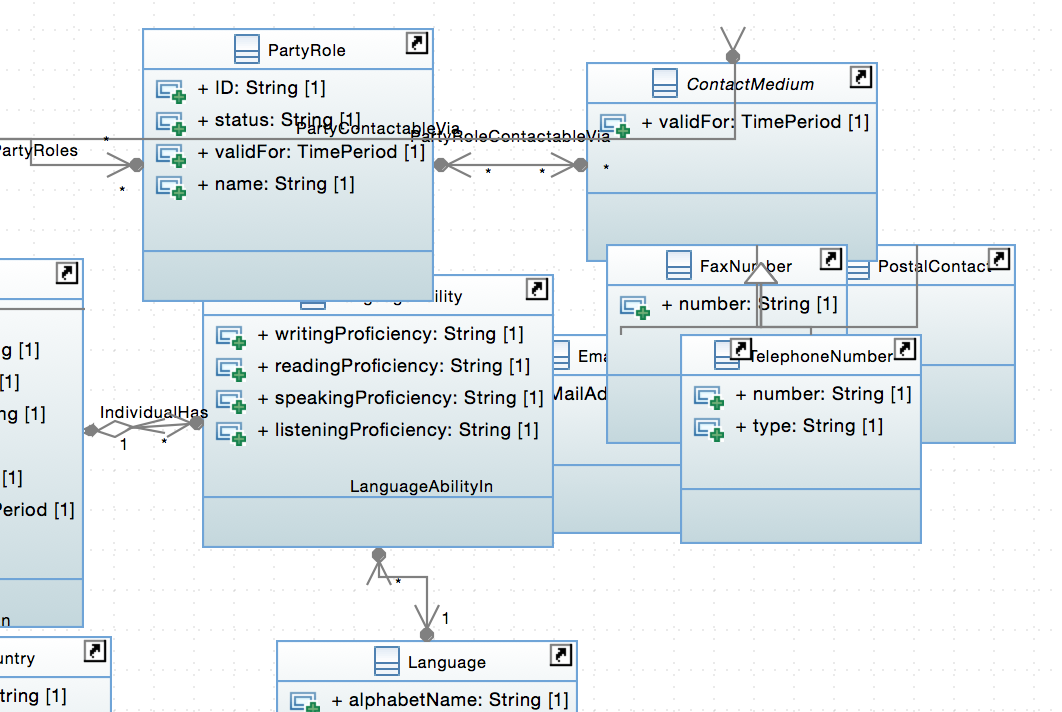

See an example in the screen shot below:

Thank you for your help.

Michel

—
