| Re: [milo-dev] encoding ResultDataType |
Hi all, Kevin_______________________________________________I'm going to decode the structure ResultDataType:Is there an example of encoding that kind of structure?I'm not able do to it by myself!This what I did1. create the ResultDataType
public class ResultDataType extends Structure implements UaStructure {
public static final ExpandedNodeId TYPE_ID = ExpandedNodeId.parse("nsu=http://opcfoundation.org/UA/Machinery/Result/;i=3008");
//public static final ExpandedNodeId TYPE_ID = ExpandedNodeId.parse("nsu=ns=5;i=3008");
public static final ExpandedNodeId XML_ENCODING_ID = ExpandedNodeId.parse("nsu=http://opcfoundation.org/UA/;i=12676");
public static final ExpandedNodeId BINARY_ENCODING_ID = ExpandedNodeId.parse("nsu=http://opcfoundation.org/UA/Machinery/Result/;i=5008");
// public static final ExpandedNodeId BINARY_ENCODING_ID = ExpandedNodeId.parse("nsu=ns=5;i=5008");
private final ResultMetaDataType resultMetaDataType;
public ResultDataType(ResultMetaDataType resultMetaDataType) {
super();
this.resultMetaDataType = resultMetaDataType;
}
@Override
public ExpandedNodeId getTypeId() {
return TYPE_ID;
}
@Override
public ExpandedNodeId getXmlEncodingId() {
return XML_ENCODING_ID;
}
@Override
public ExpandedNodeId getBinaryEncodingId() {
return BINARY_ENCODING_ID;
}
public ResultMetaDataType getResultMetaDataType() {
return resultMetaDataType;
}
public static final class Codec extends GenericDataTypeCodec<ResultDataType> {
@Override
public Class<ResultDataType> getType() {
return ResultDataType.class;
}
@Override
public ResultDataType decode(SerializationContext context, UaDecoder decoder) {
System.out.println("decode ResultDataType ");
String ResultId = null;
UInteger encodingMask = decoder.readUInt32("EncodingMask");
long encodingMaskValue = encodingMask.longValue();
if ((encodingMaskValue & (1L << 0)) != 0) {
ResultId = decoder.readString("ResultId");
}
System.out.println("ResultId "+ResultId);
ResultMetaDataType r = new ResultMetaDataType("resultId");
return new ResultDataType(r);
}
@Override
public void encode(SerializationContext context, UaEncoder writer,
ResultDataType value) throws UaSerializationException {
System.out.println("encode ResultMetaDataType ");
long encodingMaskValue = 0L;
if (value.resultMetaDataType != null) {
encodingMaskValue |= (1L << 0);
}
writer.writeUInt32("EncodingMask", Unsigned.uint(encodingMaskValue));
if (value.resultMetaDataType != null) {
//writer.writeString("ResultId", value.ResultId);
writer.writeStruct("ResultMetaDataType", value, ResultDataType.BINARY_ENCODING_ID);
//writer.writeStruct("ResultMetaDataType", value,new ResultDataType.Codec().asBinaryCodec() );
}
}
}
}
2. the previous class has as member the class ResultMetaDataType
public class ResultMetaDataType extends Structure implements UaStructure {
public static final ExpandedNodeId TYPE_ID = ExpandedNodeId.parse("nsu=http://opcfoundation.org/UA/Machinery/Result/;i=3007");
public static final ExpandedNodeId XML_ENCODING_ID = ExpandedNodeId.parse("nsu=http://opcfoundation.org/UA/;i=12676");
public static final ExpandedNodeId BINARY_ENCODING_ID = ExpandedNodeId.parse("nsu=http://opcfoundation.org/UA/Machinery/Result/;i=5005");
private final String ResultId;
public ResultMetaDataType(String resultId) {
super();
ResultId = resultId;
}
@Override
public ExpandedNodeId getTypeId() {
return TYPE_ID;
}
@Override
public ExpandedNodeId getXmlEncodingId() {
return XML_ENCODING_ID;
}
@Override
public ExpandedNodeId getBinaryEncodingId() {
return BINARY_ENCODING_ID;
}
public String getResultId() {
return ResultId;
}
public static final class Codec extends GenericDataTypeCodec<ResultMetaDataType> {
@Override
public Class<ResultMetaDataType> getType() {
return ResultMetaDataType.class;
}
@Override
public ResultMetaDataType decode(SerializationContext context, UaDecoder decoder) {
System.out.println("decode ResultMetaDataType ");
String ResultId = null;
UInteger encodingMask = decoder.readUInt32("EncodingMask");
long encodingMaskValue = encodingMask.longValue();
if ((encodingMaskValue & (1L << 0)) != 0) {
ResultId = decoder.readString("ResultId");
}
System.out.println("ResultId "+ResultId);
return new ResultMetaDataType(ResultId);
}
@Override
public void encode(SerializationContext context, UaEncoder writer,
ResultMetaDataType value) throws UaSerializationException {
System.out.println("encode ResultMetaDataType ");
long encodingMaskValue = 0L;
if (value.ResultId != null) {
encodingMaskValue |= (1L << 0);
}
writer.writeUInt32("EncodingMask", Unsigned.uint(encodingMaskValue));
if (value.ResultId != null) {
writer.writeString("ResultId", value.ResultId);
}
}
}
}
3. in the handler:
public class GetLatestResult extends AbstractMethodInvocationHandler{
private boolean hasError;
public GetLatestResult(UaMethodNode node,boolean hasError) {
super(node);
this.hasError=hasError;
}
public static final Argument TimeOut = new Argument(
"TimeOut",
Identifiers.Int32,
ValueRanks.Scalar,
null,
new LocalizedText("The argument for TimeOut.")
);
//output
public static final Argument ResultHandle = new Argument(
"ResultHandle",
Identifiers.String,
ValueRanks.Scalar,
null,
new LocalizedText("The argument for ResultHandle")
);
public static final Argument ResultDataType = new Argument(
"ResultDataType",
Identifiers.Structure,
ValueRanks.Scalar,
null,
new LocalizedText("The argument to ResultDataType.")
);
public static final Argument Error = new Argument(
"Error",
Identifiers.Int32,
ValueRanks.Scalar,
null,
new LocalizedText("The argument to Error.")
);
@Override
public Argument[] getInputArguments() {
return new Argument[] {TimeOut};
}
@Override
public Argument[] getOutputArguments() {
return new Argument[] {ResultHandle,ResultDataType,Error};
}
@Override
protected Variant[] invoke(InvocationContext invocationContext, Variant[] inputValues) throws UaException {
System.out.println("invoke GetLatestResult has error: " + hasError);
@SuppressWarnings("removal")
Integer resultHandle = new Integer(22);
Integer error = new Integer(22);
ResultMetaDataType rMDt = new ResultMetaDataType("resultIdd");
ResultDataType rDT = new ResultDataType(rMDt);
LocalizedText stMessage = new LocalizedText("status message");
Variant var = new Variant(rDT);
return new Variant[]{new Variant(resultHandle),var,new Variant(error)};
}
}

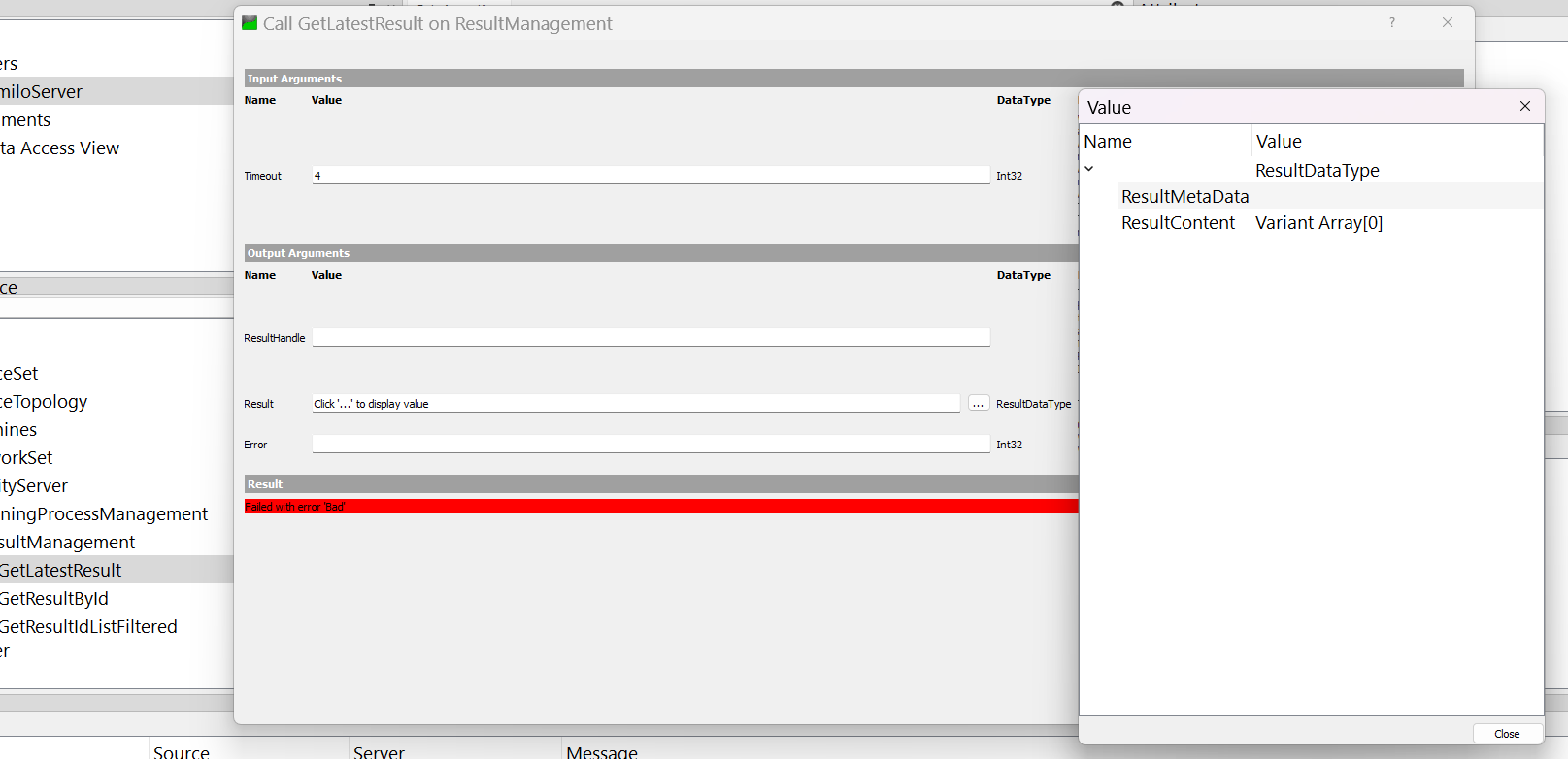

There is no way to have the value returned by the method invoke, when the platform call the encoding method it give me error:In the class ResultDataType in the method encode:09:44:58.300 [milo-shared-thread-pool-8] WARN o.e.m.o.stack.core.util.TaskQueue - Uncaught Throwable during Task execution.
- if I use writer.writeStruct("ResultMetaDataType", value,new ResultDataType.Codec().asBinaryCodec() ); I get:
java.lang.StackOverflowError: null
at java.base/sun.nio.cs.UTF_8$Encoder.encodeArrayLoop(UTF_8.java:456)
at java.base/sun.nio.cs.UTF_8$Encoder.encodeLoop(UTF_8.java:564)
at java.base/java.nio.charset.CharsetEncoder.encode(CharsetEncoder.java:585)
at java.base/sun.nio.cs.StreamEncoder.implWrite(StreamEncoder.java:293)
at java.base/sun.nio.cs.StreamEncoder.implWrite(StreamEncoder.java:282)
at java.base/sun.nio.cs.StreamEncoder.write(StreamEncoder.java:132)at java.base/java.io.OutputStreamWriter.write(OutputStreamWriter.java:205)09:53:20.272 [milo-shared-thread-pool-1] ERROR o.e.m.o.s.s.t.u.UascServerSymmetricHandler - Error serializing response: StatusCode{name=Bad_EncodingError, value=0x80060000, quality=bad}
- If I use writer.writeStruct("ResultMetaDataType", value, ResultDataType.BINARY_ENCODING_ID); I get
org.eclipse.milo.opcua.stack.core.UaSerializationException: no codec registered: NodeId{ns=5, id=5008}
at org.eclipse.milo.opcua.stack.core.serialization.OpcUaBinaryStreamEncoder.writeStruct(OpcUaBinaryStreamEncoder.java:938)
at org.eclipse.milo.opcua.stack.core.serialization.OpcUaBinaryStreamEncoder.writeStruct(OpcUaBinaryStreamEncoder.java:958)
at org.eclipse.milo.opcua.stack.core.types.structured.ResultDataType$Codec.encode(ResultDataType.java:116)Even if I have registered the codec in dataTypeInizializer;So what is wrong with this? Also is it possible to encoding a well known structure that contains another structure?--Ing. Viscomi Francesco
