Hey
Yes, I have just closed/reopened
You are speaking about “redraw”, where is located this button/menu?

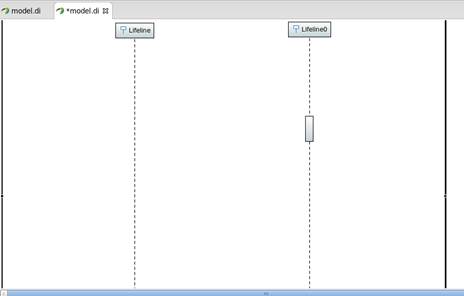

Here some specific screenshots
Does the problem come from
AbstractExecutionSpecificationEditPart à Figure
LayoutEditPloicy à ActionExecutionSpecificationEditPart

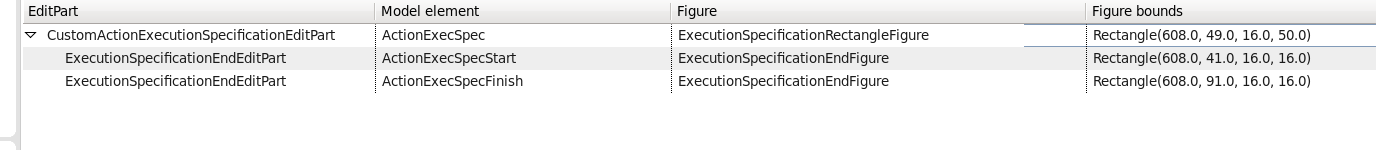

![](pngYrrkkK8toD.png)

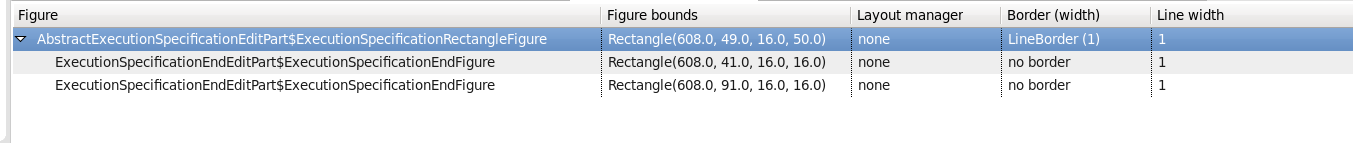

![](pngtjA9V8zlq4.png)

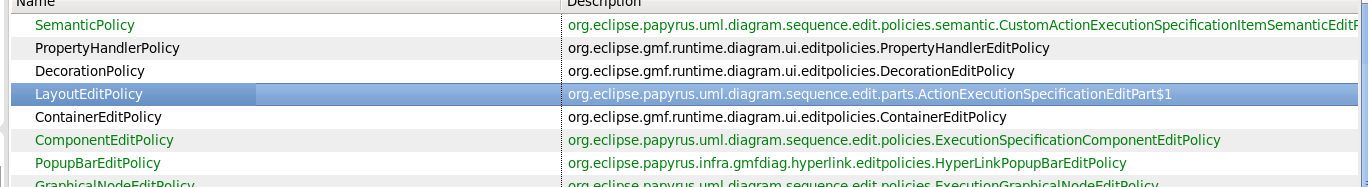

![](png38QJaRN7KC.png)

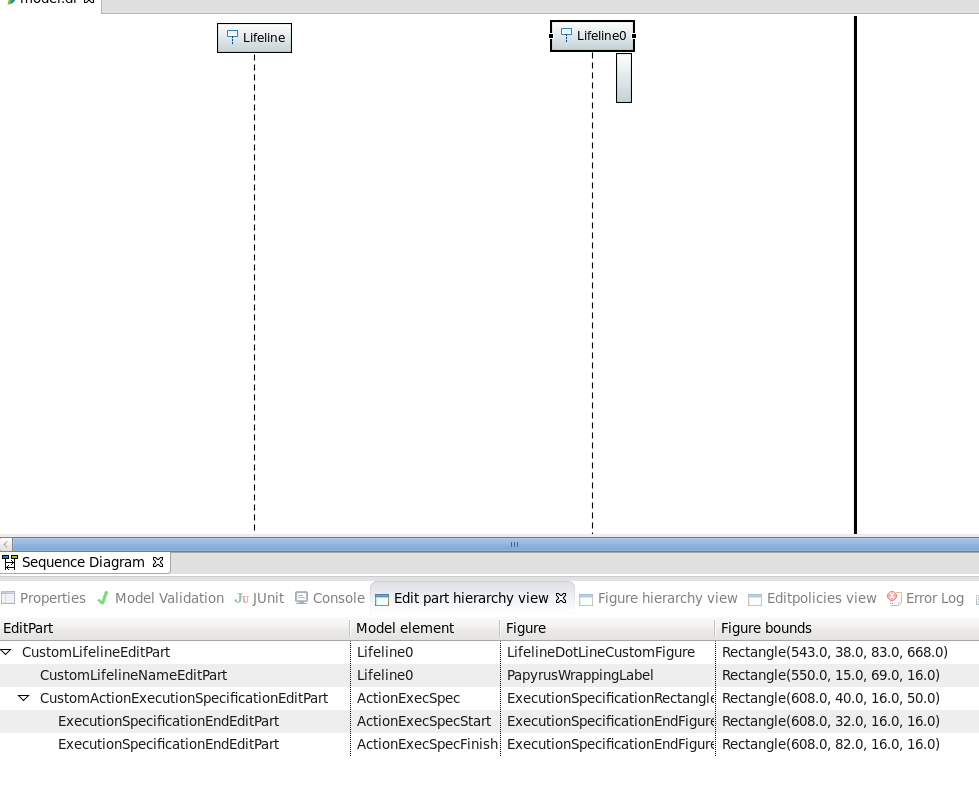

Here the detailled views asked (first for action then for lifeline)
![](pngn9WmVMXnWp.png)

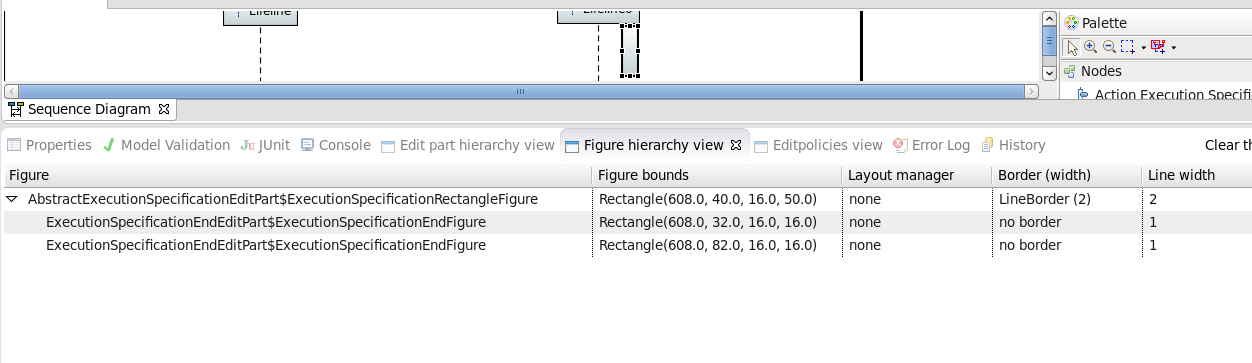

![](pngSUij1OVOq_.png)

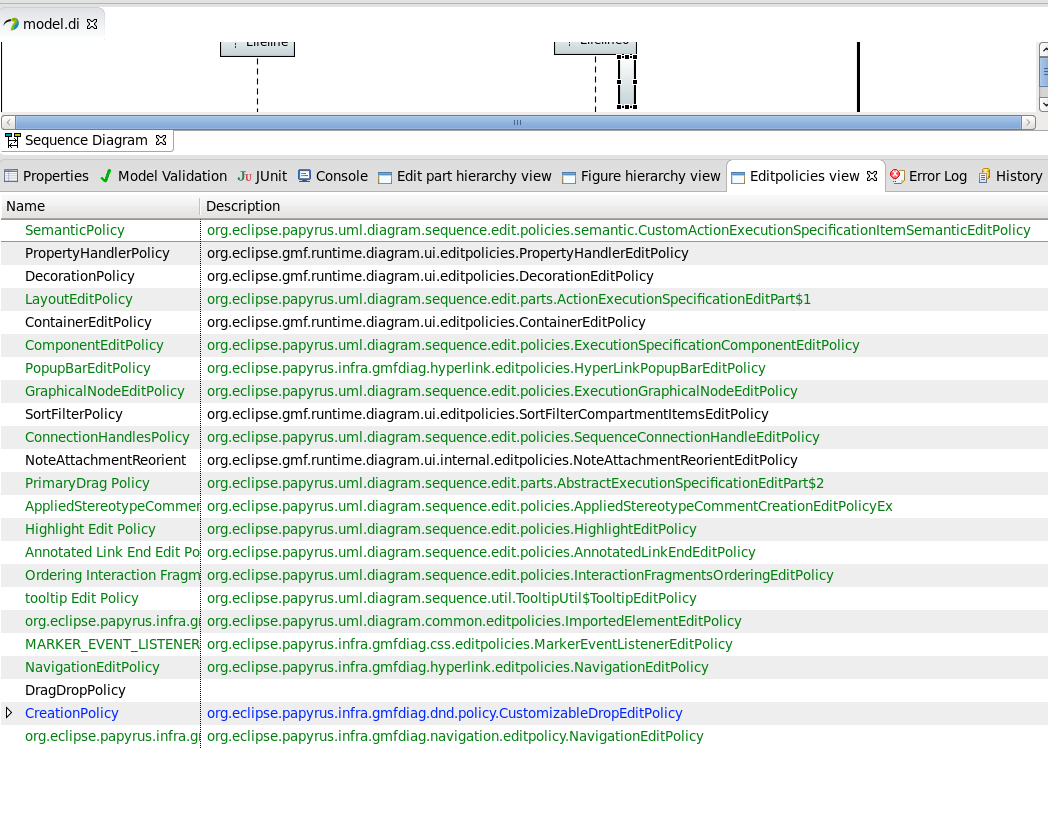

![](pnguYIg9zjbHt.png)

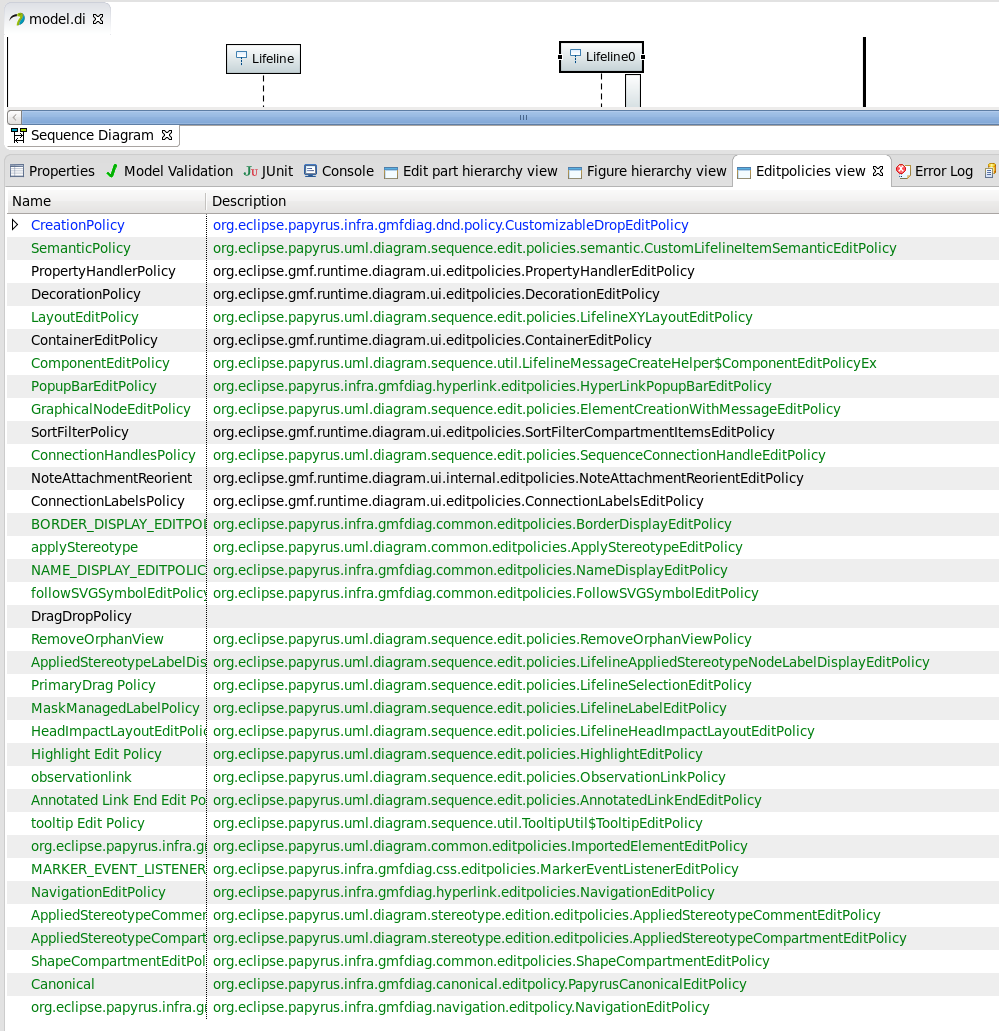

![](pngw2jg7M6XNw.png)
De : mdt-papyrus.dev-bounces@xxxxxxxxxxx [mailto:mdt-papyrus.dev-bounces@xxxxxxxxxxx] De la part de RADERMACHER Ansgar 206501
Envoyé : vendredi 12 juin 2015 14:55
À : mdt-papyrus.dev@xxxxxxxxxxx
Objet : [PROVENANCE INTERNET] Re: [mdt-papyrus.dev] [PROVENANCE INTERNET] Bug in sequence diagrams
Hi François,
If I understand right, you just saved and reopened (does redraw help?). The only idea that I have is that there is an issue with a viewport that shifts coordiantes. Can you try to use the Papyrus developer views oep.gmf.figureview and oep.gmf.editpartview that show the hierarchy of figures and editparts, respectively ?
Best regards
Ansgar
On 12/06/2015 14:32, LE FEVRE FRANCOIS wrote:
Hello
Does anyone has a glue to help me to solve this bug
https://bugs.eclipse.org/bugs/show_bug.cgi?id=470059
in which direction, should I look ?
Thanks

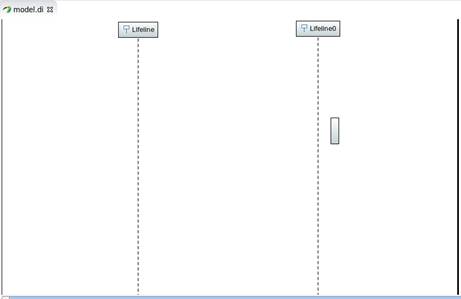

-à ![](jpge8QuOs2Gom.jpg)
