Hi Jan-Patrick,
Please see below!
regards
______________________________
Jad El-khoury, PhD
KTH Royal Institute of Technology
School of Industrial Engineering and
Management, Mechatronics Division
Brinellvägen 83,
SE-100 44 Stockholm, Sweden
Phone: +46(0)8 790
6877 Mobile: +46(0)70 773 93 45
jad@xxxxxx,
www.kth.se
-----Original
Message-----
From: lyo-dev-bounces@xxxxxxxxxxx
<lyo-dev-bounces@xxxxxxxxxxx>
On Behalf Of Jan-Patrick Osterloh
Sent: 07 November 2019 14:12
To: lyo-dev@xxxxxxxxxxx
Subject: [lyo-dev] JSP Generator Problem resourceshape
Hi everybody,
when I generate my project from
scratch (I deleted all jsp files to get current versions of
the files after I added more properties to my resources),
then there is one problem in the resourceshape.jsp. It
generates the following code in the "Describes" section:
79:
<%for(URI next :
aResourceShape.getDescribes()) {%>
80:
<li>
81:
<a href="">
82:
<%= next.toString().split("#")[1]%></a>
83:
</li>
84:
<%}%>
85: </ul>
My "Describes" are all "null", because
I didnt set this property.
Side note: I can't set it because the
editor just tells me "Please select a valid 'Class'", but I
don't have anything in my project that is accepted as a
valid class...
Jad: Here
the editor is after a RDF Vocabulary Class. An OSLC shape
describes such an rdf-Class. that’s what really defines
the rdf:type. if you don’t define one, the generator takes
the shape’s name as its type implicitly. So, it’s not
wrong not to define the “describes” property in the model.

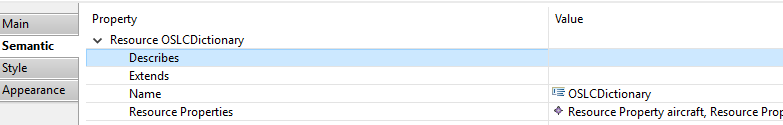

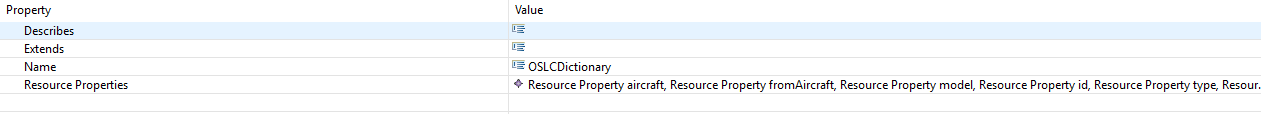

But, you
can. You define such classes under the Vocabularies
section of you model. See attached picture!
You can’t
see such a section? Then it is likely that you have an
older model, before Vocabularies were introduced. If this
is of interest, I can help you create it.
Nevertheless, if I then open any of
the ResourceShapes in my model
(.../services/resourceShapes/<ResourceShape>, I get an
Exception:
An exception occurred processing JSP
page /package/resourceshape.jsp at line 82 ...
java.lang.ArrayIndexOutOfBoundsException:
1
at
org.apache.jsp.package.resourceshape_jsp._jspService(resourceshape_jsp.java:184)
at
org.apache.jasper.runtime.HttpJspBase.service(HttpJspBase.java:70)
at
javax.servlet.http.HttpServlet.service(HttpServlet.java:731)
Jad: This
is very strange, because you should not even be in this
for-loop (line 79) if “aResourceShape.getDescribes()” is
null/empty.
And I
could not reproduce this problem for a similar model here.

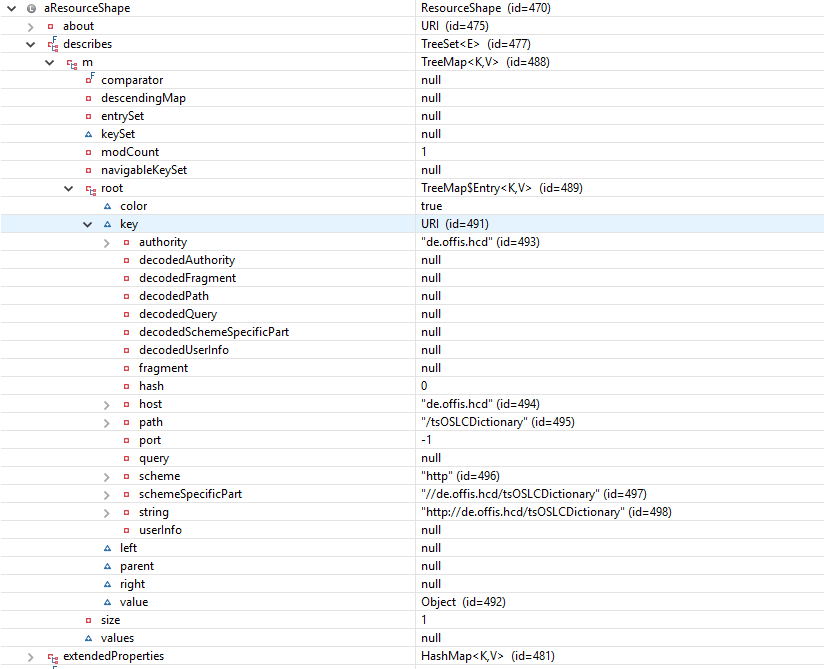

Could you
please check the size and content of
“aResourceShape.getDescribes()”? Could you have somehow
managed to fill it with some item which is not a “class”?
I have removed the for loop completely
and this "fixes" the problem, but I think that might be
better fixed in the generator template...
Best
Jan-Patrick
P.S. Is there an option to always
regenerate the jsps? I just use them for "debugging", so
from my point of view they could be updated...?
Jad: I’m
with you on this one, because I also miss many bugs, since
I don’t end up re-generating the jsp pages, which I use
for debugging.
Earlier
versions allowed regenerations of specific blocks within
each jsps. But that was very inflexible. And there was a
need to have full control over the jsp content.
That’s why
we now put the whole file content between these “protected
user-code” blocks.
My
thoughts now: provide a check-box option on the adaptor
that lets you (the modeller) decide whether to (a)
surround the whole jsp-content within “protected
user-code” or (b) no protected user-code, meaning all
content in the jsp is re-generated.
What do
you think? I created a issue on
https://github.com/eclipse/lyo.designer/issues/128,
so we can continue the dialog there.
--
