Hi Jan-Patrick,
Please see below!
regards
______________________________
Jad El-khoury, PhD
KTH Royal Institute of Technology
School of Industrial Engineering and
Management, Mechatronics Division
Brinellvägen 83, SE-100
44 Stockholm, Sweden
Phone: +46(0)8 790 6877
Mobile: +46(0)70 773 93 45
jad@xxxxxx, www.kth.se
-----Original Message-----
From: lyo-dev-bounces@xxxxxxxxxxx
<lyo-dev-bounces@xxxxxxxxxxx> On Behalf Of Jan-Patrick
Osterloh
Sent: 07 November 2019 14:12
To: lyo-dev@xxxxxxxxxxx
Subject: [lyo-dev] JSP Generator Problem resourceshape
Hi everybody,
when I generate my project from scratch
(I deleted all jsp files to get current versions of the files
after I added more properties to my resources), then there is
one problem in the resourceshape.jsp. It generates the
following code in the "Describes" section:
79: <%for(URI
next :
aResourceShape.getDescribes()) {%>
80:
<li>
81:
<a href="">
82:
<%= next.toString().split("#")[1]%></a>
83:
</li>
84: <%}%>
85: </ul>
My "Describes" are all "null", because I
didnt set this property.
Side note: I can't set it because the
editor just tells me "Please select a valid 'Class'", but I
don't have anything in my project that is accepted as a valid
class...
Jad: Here
the editor is after a RDF Vocabulary Class. An OSLC shape
describes such an rdf-Class. that’s what really defines the
rdf:type. if you don’t define one, the generator takes the
shape’s name as its type implicitly. So, it’s not wrong not
to define the “describes” property in the model.
But, you
can. You define such classes under the Vocabularies section

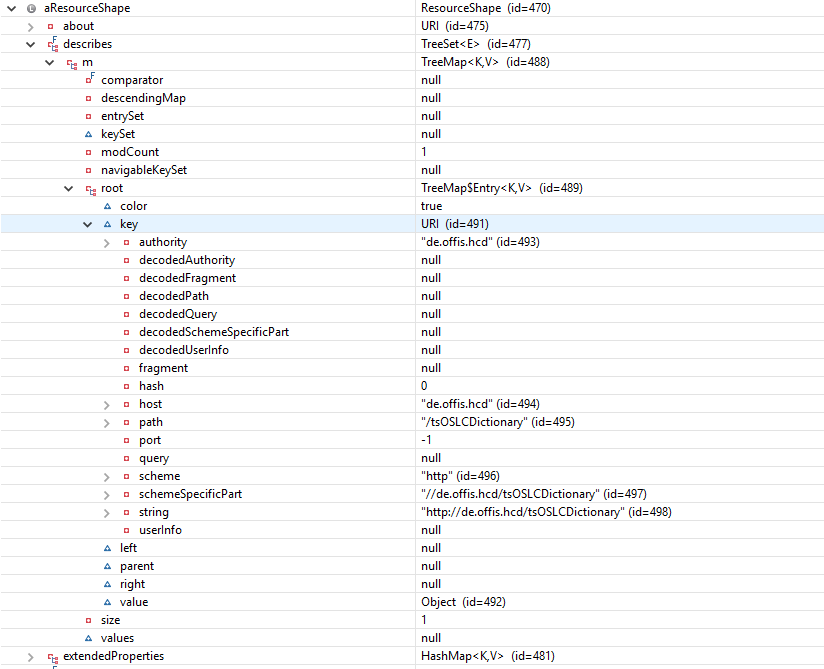

of you model. See attached picture!
You can’t
see such a section? Then it is likely that you have an older
model, before Vocabularies were introduced. If this is of
interest, I can help you create it.
Nevertheless, if I then open any of the
ResourceShapes in my model
(.../services/resourceShapes/<ResourceShape>, I get an
Exception:
An exception occurred processing JSP
page /package/resourceshape.jsp at line 82 ...
java.lang.ArrayIndexOutOfBoundsException:
1
at
org.apache.jsp.package.resourceshape_jsp._jspService(resourceshape_jsp.java:184)
at
org.apache.jasper.runtime.HttpJspBase.service(HttpJspBase.java:70)
at
javax.servlet.http.HttpServlet.service(HttpServlet.java:731)
Jad: This is
very strange, because you should not even be in this
for-loop (line 79) if “aResourceShape.getDescribes()” is
null/empty.
And I could
not reproduce this problem for a similar model here.
Could you
please check the size and content of
“aResourceShape.getDescribes()”? Could you have somehow
managed to fill it with some item which is not a “class”?
I have removed the for loop completely
and this "fixes" the problem, but I think that might be better
fixed in the generator template...
Best
Jan-Patrick
P.S. Is there an option to always
regenerate the jsps? I just use them for "debugging", so from
my point of view they could be updated...?
Jad: I’m
with you on this one, because I also miss many bugs, since I
don’t end up re-generating the jsp pages, which I use for
debugging.
Earlier
versions allowed regenerations of specific blocks within
each jsps. But that was very inflexible. And there was a
need to have full control over the jsp content.
That’s why
we now put the whole file content between these “protected
user-code” blocks.
My thoughts
now: provide a check-box option on the adaptor that lets you
(the modeller) decide whether to (a) surround the whole
jsp-content within “protected user-code” or (b) no protected
user-code, meaning all content in the jsp is re-generated.
What do you
think? I created a issue on
https://github.com/eclipse/lyo.designer/issues/128, so we
can continue the dialog there.
--
