Hello Geneviève,
I completely agree with the concept.

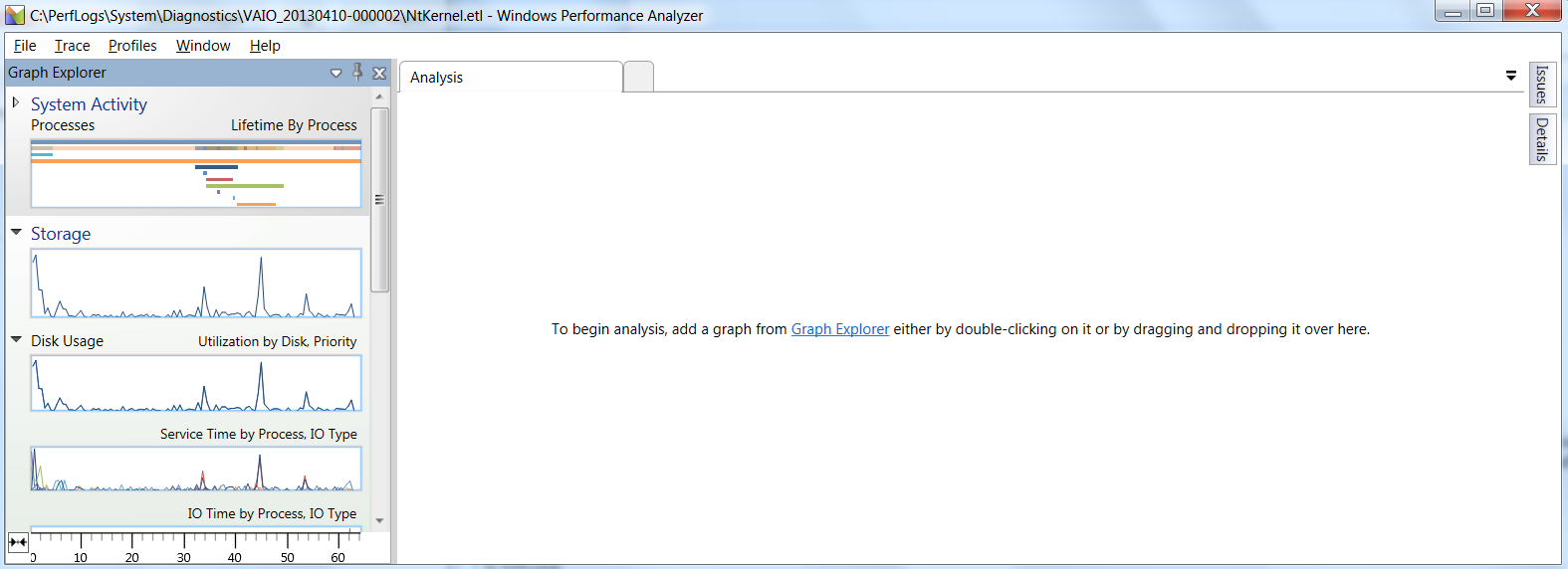

The Microsoft
viewer does the same
thing with the "Graph Explorer".
I think it makes easier the interaction with the
user.
Continue in this
direction!
Cheers,
Florian
Le 12/07/2013 15:43, Geneviève Bastien a écrit :
Hello,
As more and more trace analysis are getting available for TMF, I
think we should have an easier, more modular way to add new
analysis.
From my experience with trace synchronization and execution
graph/critical path, an analysis typically has to be implemented
(a few more packages in tmf.core), it provides a view or more (in
tmf.ui or the trace's .ui plugin), sometimes needs a handler for
the project view (new classes in tmf.ui) and the trace needs to
know about it (modification of the trace classes, even the
ITmfTrace). tmf.core and tmf.ui are getting very crowded.
Here's the analysis framework I'd propose to add new analysis:
In tmf.core:
* A new analysis manager that handles the content from the
extension point described below
* Base classes and interfaces for all analysis
* ITmfTrace will have new methods to get all applicable analysis
for a given trace type and execute them when necessary
New extension point "org.eclipse.linuxtools.tmf.core.analysis"
An analysis has
* class: Class that implements this analysis
* tracetype: class of the trace it applies to (default: all
traces)
* requires: other analysis modules that are required to run
before this one
* automatic: whether to run this analysis when the trace is
opened (default: false)
* provided views: which views will be available once the
analysis is done
* icon: to represent this analysis
The project explorer view could show the analysis like this for
example:
- My Project
- Experiments [1]
- SyncExperiment
- Trace 1
- Trace 2
o Analysis: trace synchronization
o Synchronization view
o Synchronization statistics view
- Traces [2]
- Trace 1
o Analysis: Lttng Kernel state system
o Control flow view
o Resources view
o Critical path
o Critical path view
....
In the long run, the actual state system and statistics could be
considered analysis types and be refactored using this framework.
Each new analysis can then be implemented in its own standalone
plugin, with core and ui, which would require only the tmf.core|ui
(and the plugins containing other analysis it requires of course).
The main plugins would not require any analysis modules.
I'd like some feedback on the proposed approach. I know Francis
Giraldeau has been thinking on this problem as well, mostly on the
dependencies between analysis. I think this approach is
complementary.
Thanks,
Geneviève Bastien
