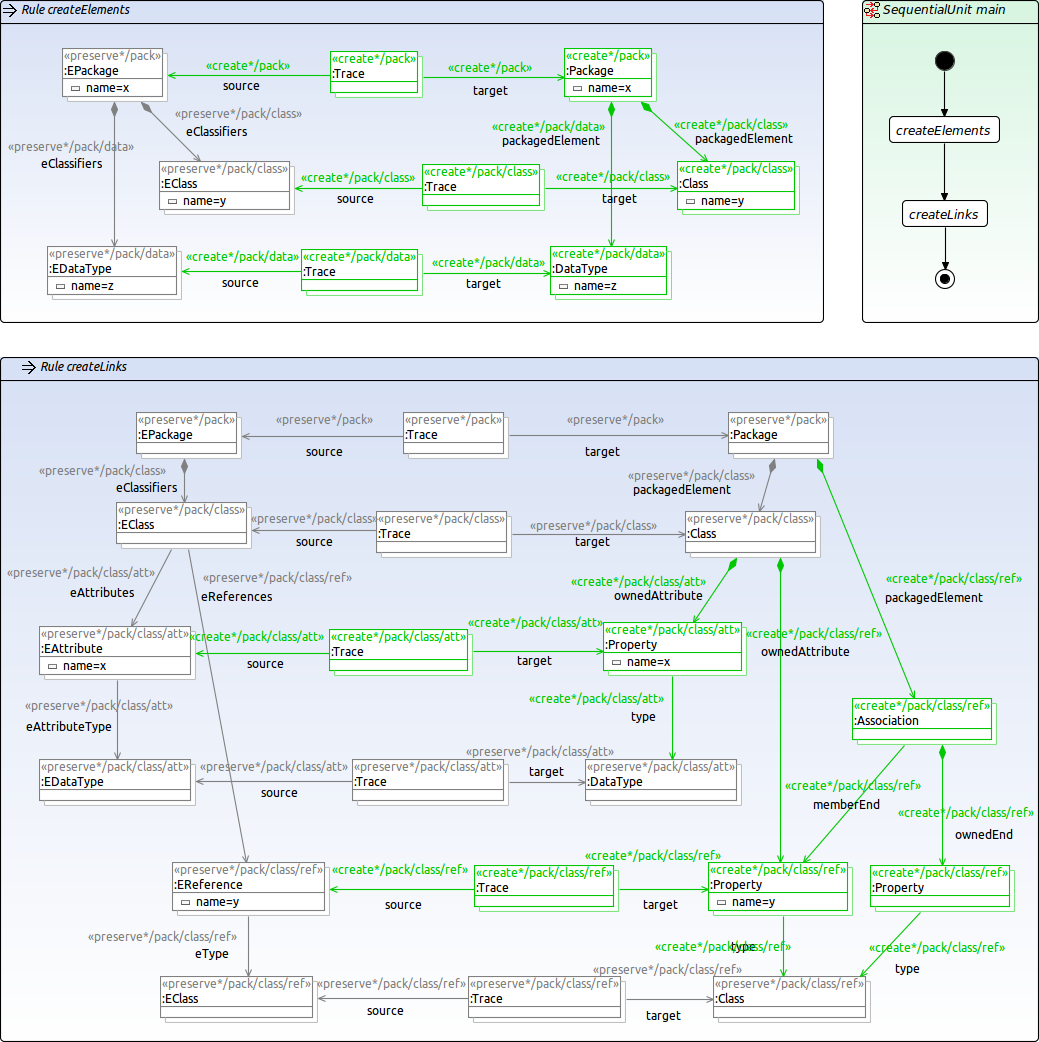

I created a first version of a Ecore2UML transformation which makes use
of nested rules. I attached a screenshot of the rules. It works so far
but I don't know whether I am correctly creating the associations in the
UML2 model. If someone knows how the Association class should be used,
please let me know. I will commit the example into the SVN later today.

Cheers,
Christian

PS: I think it makes sense to support an edge notation for Trace objects
in the graphical editor (or for any types that have a "source" and a
"target" reference)
