Re: [geowave-dev] GSOC 2015-GeoWave Monitor: Map-Based Accumulo Status and Health
|
Hi
Whitney,
i moved to "Task 3 Develop a robust GeoWave Monitor UI" since i finished the computing Convex Hull for each tablet.
Also i implemented the Test case for it as you said. code can be found at here[1]
Here the REST api, I implemented.
- http://<host>/app/stat/table/
- will give the all the table stat in that accumulo instance
- http://<host>/app/stat/tablet/{table}
- Will give all the tablet stat associated with table you provided
- http://<host>/app/stat/tablet/{table}/{tabletId}
- Will give the Stat data for requested tablet and table
- http://<host>/app/stat/geo
- Will give the Convex Hull points
- Still not design the final API definition
I implemented the web app using D3 for displaying stat information based on the above REST API. Currently it is a prototype but it works as you said. It need some improvement and functionalities. Code will be found at[2]

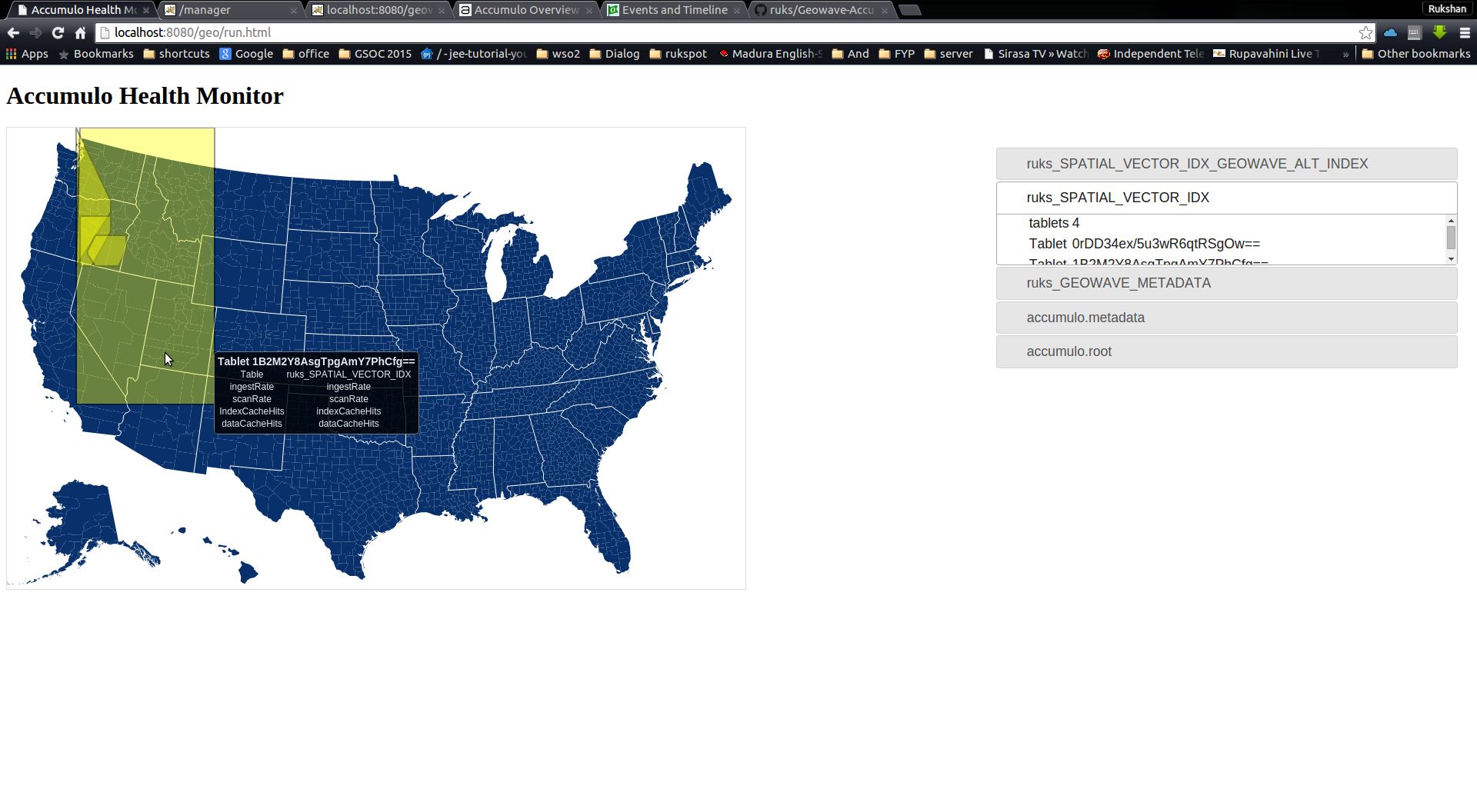

Here the snapshot of the webapp.
- at right, it list the table list and have list down each tablet associate with it.
- at left on the map, it shows the list of tablet's convex hull, associate with one table.
- If you hover the tablet, it will show a tablet using REST api. (here not implemented to show fetched stat)
Can you review the code and provide some feedback regarding the webapp and REST api.
Thanks and Regards.
Attachment:
Description: PNG image
