Hi everyone, I would like to introduce myself (or reintroduce myself) and
explain what is this plug-in and why there is a need for it. I’m Technical Director within ILOG Inc www.ilog.com
(Sunnyvale, CA) and I created the methodology used by the ILOG professional
services worldwide a few years ago. This methodology called ISIS, was migrate
to EPF in june 2006, and last summer 2007 it was completely linked to OpenUp as
it extends a lot of its concepts. I started to create this methodology to
respond to a lot of customer requests on how to develop a business application
using Rule Engine, what are the best practices, and methods to follow…. One
element of ISIS, is a plug in developed for the BRMS market. This plug in is
now called ABRD and is my contribution to openUp library. This plugin will
evolve in close future to have more best practices around governance and
architecture. I really hope it will have a lot of interest and contributors will
share their experiences acquired during projects which are using BRMS, BPM, and
SOA. Here is the formal introduction of ABRD: The Agile Business Rule Development plug-in for the Eclipse
Process Framework presents a pragmatic approach to the development of a Business
Rule Application using Rule Engine and Business Rules Management System
(BRMS) technology such as ILOG JRules, Rules for .Net or any
other Rule Engine and BRMS on the market. Business rules are an _expression_ of business policy in a
form that is both comprehensible to business users and executable by a rule
engine. From a business perspective, a business rule is a precise statement
that describes, constrains, or controls some aspect of the business.
Let’s illustrate this with a simple example coming from the lending
industry. The following business policy can be established to limit the
purchase of loans by a bank or lender: Only
prime loans are eligible for purchase This policy may be split into two rules, one defining what a
prime loan is and the second taking the decision on purchasing it. If
the loan amount is less than the prime loan limit, then the loan type is Prime If
the loan type is not Prime then reject the loan Implementing these rules using an Object Oriented Language
may look like two if statements testing conditions on objects, and
applying actions on the same or other objects: if
(loan.amount < PrimeLoanLimit) {
loan.type = PrimeType; } if
(loan.type != PrimeType) {
case = new Case(“Loan is not Prime”);
loan.status = REJECT; }
The concept of business rules is not new, and for decades
analysts and developers were implementing them within business applications.
What is more recent is the introduction of a Business Rule Management System
application which provides tools to manage the rule as a standalone element, outside
of the core business application, and in a form which is executable by a rule
engine. Business rules are packaged as a rule set which can be considered as a piece of software
executed by a rule engine. Integrated in a business application, the rule set
implements a sub-set of the business logic. This logic is externalized from the
traditional code and can be easily changed, and maintained by business analysts
instead of developers. As opposed to business logic embedded and hidden in
functions, procedures, macros or databases, business rules are clearly
separated from the rule engine, a software component which executes and

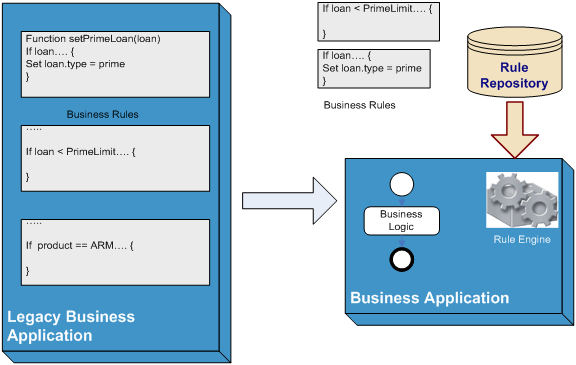

activates rules based on matching conditions on a set of data. Figure 1 below illustrates this fundamental approach in implementing business logic, with the
old embedded model on the left and the new architecture on the right. In many
ways the approach is similar to the separation of code and data which Data Base
Management Systems (DBMS) brought in the 1970s.
Figure 1: Buried vs. Externalized Business Rules A piece of business logic or rule embedded
in code will be more difficult to identify, locate, and change, therefore
increases costs of maintenance. A rule which is externalized in a BRMS
platform, and whose versions are controlled in a rule repository and deployed
and executed in a rule engine, will be much easier to modify, thus reducing
dramatically the time and cost to implement changes required by the business. Traditional software life cycles such as
the V cycle or waterfall model are notorious for leading to systems which costs
more than expected, come to market later than planned and with outcomes not
matching the clients’ initial expectations. With such approaches, the
business users have little ownership of the solution, and the time required to
implement changes can easily range from 3 to 6 months if not more. As a result,
policy owners don’t feel comfortable with change which translates into a
loss of agility to respond to new business and competitive situations: too much
time passes between policy owners submitting requirements to IT and the actual
deployment of new rules. Also, with all the fine tuning and
iterations, policy owners cannot really be sure that the policy is being
implemented according to their needs. The only way to actually know is to keep
performing tests and hope that all the cases are covered in such tests. As important element of the business decision, the business
rules need strong management processes and tools to support their life cycle. A BRMS provides solutions to make this management more efficient,
both for developers and for the business users of the applications. Obviously
tooling is not the single answer to the software and business challenges behind
the development of decision-support systems. Deploying BRMS, BRE, and BPM
components into business applications requires to modify current development
methodologies and practices in order to take into account new concepts as well
as providing a better collaboration framework between IT and business. The Agile Business Rule Development (ABRD) methodology
corresponds to such a need. It is an incremental and iterative software
development process leveraging the Agile Alliance manifesto. Here are some of
the Agile development values particularly relevant to the implementation of a
rule set using the ABRD approach: ·
Individuals and interactions over processes
and tools. The rule discovery, analysis and validation activities require
an active and efficient communication between the rule developer and the
Subject Matter Experts (SME). Such processes are defined as light as possible. ·
Working software over comprehensive
documentation. The proposed rule set development done per iteration, with
its validation step, is based on the evidence that a working and executable
rule set has much more business value than a rule description manual. All the
project stakeholders benefit from such a principle but in particular the
business users who are then sure that what they see (the rules) is what gets
executed in the deployed system. ·
Customer collaboration over contract
negotiation. Subject Matter Experts who define the business policies and
the business rules are strongly involved in the development process. They are
the customers of the final system, owners of the policies and are conveniently
collocated with the development team during the project. ·
Responding to change over following a plan.
Business rules evolve, more often and faster than other standard pieces of
software. This is actually one of the key values of the business rule approach.
For this fundamental reason the methodology to support the rule set development
has to be tailored to such rapid life cycle and include the appropriate
activities, processes, best practices and work products to support such changes
efficiently. The Agile Business Rule Development methodology addresses in
more detail the following goals: ·
Separate rules as a manageable artifact using
discovery, analysis and authoring activities and work products ·
Trace rules during their full life cycle from
requirement to deployment and maintenance ·
Link rules to business context and motivation ·
Develop the rule description using business
terms and high level rule language ·
Prepare the logical data model for the
rule engine (The concept of Business Object Model in ILOG JRules) ·
Prepare the Rule set implementation and
deployment as decision services in a SOA or BPM application ·
Articulate the rule governance processes Two fundamental drivers govern successful rule set
developments: ·
The unforgiving honesty of executable rules ·
The effectiveness of people working together
with goodwill, shared vision and common interests (the business user and the
development team). Executable or working rules tell the developers and the
Subject Matter Experts what they really do as opposed to promise through a paper-based
design or specification. ABRD was developed by ILOG to support successful
implementation and deployment of BRMS by its customers. It is now offered as a
free open source methodology as part of the Eclipse Process Framework plug-in
library. ABRD extends OpenUP to avoid redefining some standard roles,
tasks, work products, guidelines and processes which are also relevant to rule
development. As an EPF plug-in, development teams can leverage it for their own
purpose and tailor it to the specific context of their own project, leveraging
the EPF Process Composer. Jerome Office 1 408 991 7195 Cell 1 650 642 6852 From:
