Re: [emfcp-dev] [EMF Forms] Extending LinkControlSWTRenderer

Hi Cyril,

This is a bug in EMFForms. I will fix this for the 1.10 RC1.
In the meantime you have to create a folder "icons" in your plugin project where you extend the LinkControlSWTRenderer. The needed icons are: "set_reference.png", "reference.png", "unset_reference.png" .
The second thing you need are the messages, those have to be added to a bundle.properties the is placed in the OSGI-INF/l10n folder. The relevant keys are:
"LinkControl_NoLinkSetClickToSetLink";
 "LinkControl_NewReference";
"LinkControl_AddReference";
"LinkControl_DeleteReference";
"LinkControl_NotSet";
"LinkControl_DeleteModelQuestion";
"LinkControl_QuestionMark";
"LinkControl_DeleteReferenceConfirmation";
"LinkControl_DeleteReferenceYes";
"LinkControl_DeleteReferenceNo";

I hope this helps.

Could you please use the Newsgroup:  https://www.eclipse.org/forums/index.php/f/19/ the next time instead of the developer mailing list. Thank you.

Cheers,
Eugen

On Wed, Aug 24, 2016 at 9:45 AM, CHEVE, CYRIL <cyril.cheve@xxxxxxxx> wrote:
Hello,

I am currently working for the AtoS company on a project on which we are using EMF Forms.
I have created a new plugin project in which I have extended some classes as MultiReferenceSWTRenderer and LinkControlSWTRenderer to add an hyperlink in some cases.

When extending these classes,  I have the following message:
Discouraged access: The type 'LinkControlSWTRenderer' is not API (restriction on required library '…\org.eclipse.emf.ecp.view.core.swt_1.9.0.20160606-1526.jar')
Is there a better way to customize these renderers ?

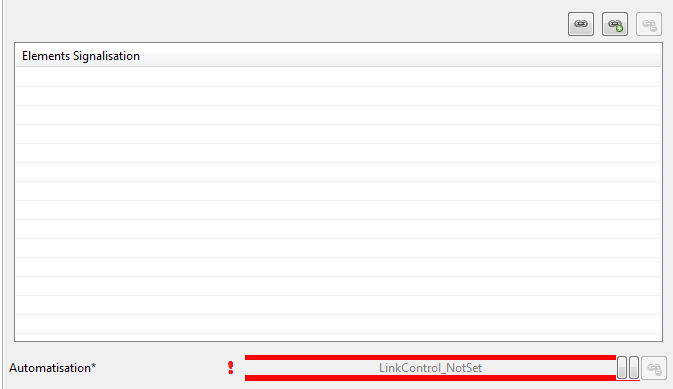

Moreover, all works fine for my class that extends MultiReferenceSWTRenderer. But I have some problems with my class that extends LinkControlSWTRenderer. In fact, the translation of the labels and some images are not found in my plugin, so the display is not correct (See attachment).

In LinkControlSWTRenderer, the getClass() method is used to search in the ImageRegistryService and in the EMFFormsLocalizationService.
Examples:
  • line 314: return imageRegistryService.getImage(FrameworkUtil.getBundle(getClass()), "icons/set_reference.png");
  • line 371: return localizationService.getString(getClass(), key);
In MultiReferenceSWTRenderer, the getClass() method is replaced by MultiReferenceSWTRenderer.class.
Examples:
  • line 458: return imageRegistryService.getImage(FrameworkUtil.getBundle(MultiReferenceSWTRenderer.class), path);
  • line 294/295: btnAddExisting.setToolTipText(LocalizationServiceHelper.getString(MultiReferenceSWTRenderer.class, MessageKeys.MultiReferenceSWTRenderer_addExistingTooltip));
Is there a way to change the behavior in LinkControlSWTRenderer ?

Thanks in advance for your response.

Regards,

Cyril Chevé
