Re: [eclipse-incubator-e4-dev] Describe your UI with XMl (XUL, XHTML...) to render it with SWT and SWT CSS engine.
|
Hi,
E4 so hot, I'm hotted by E4. But seems My hot is a bow of cool water.
As mentioned before, I not have so much thing in English and others because of my hard.
So in 4 words just.
1, I have an Object Notation(ON, former version at
on.dev.java.net), the simplest format, as you will see later. And I make a simpler ON text editor work it, (yes in my eclipse 34M7 dropins directory).
2, I making a protocol definition at UI and binding. And in my implementation, I just lock at MigLayout, of cause, to change it, not so hard. And stylesheet in consideration, but not CSS.
3, I making a FormBuilder to build a external Form Manager, which handle callback or other programming. the Form not a Composite but need a Composite, somehow like browsers' Document object.
4, I making a PropertySheetPage worked with the FormBuilder, which need a FormInfo provider just IPropertySource. I not employ plugin schema, its burd so weight, I not wanna add any more :)
I now struggle with eclipse databinding to make it work with a extenal listener manager. yes, I prefer Pure Java Object to beans.
I think no necessary let more speaking in the Global Intelligence.
Just 2 statements:
Ant teach me to employ default property to object. f.e. you can def a label just like: label: Address; no need to do like this: label{ text:Address}
ON support words as ONE word. f.e. E4 developer is "E4 developer", just like our names, Zhuang zhou is "Zhuang zhou",
Happy to hear you.
Regards,
Qinxian
Attachments {

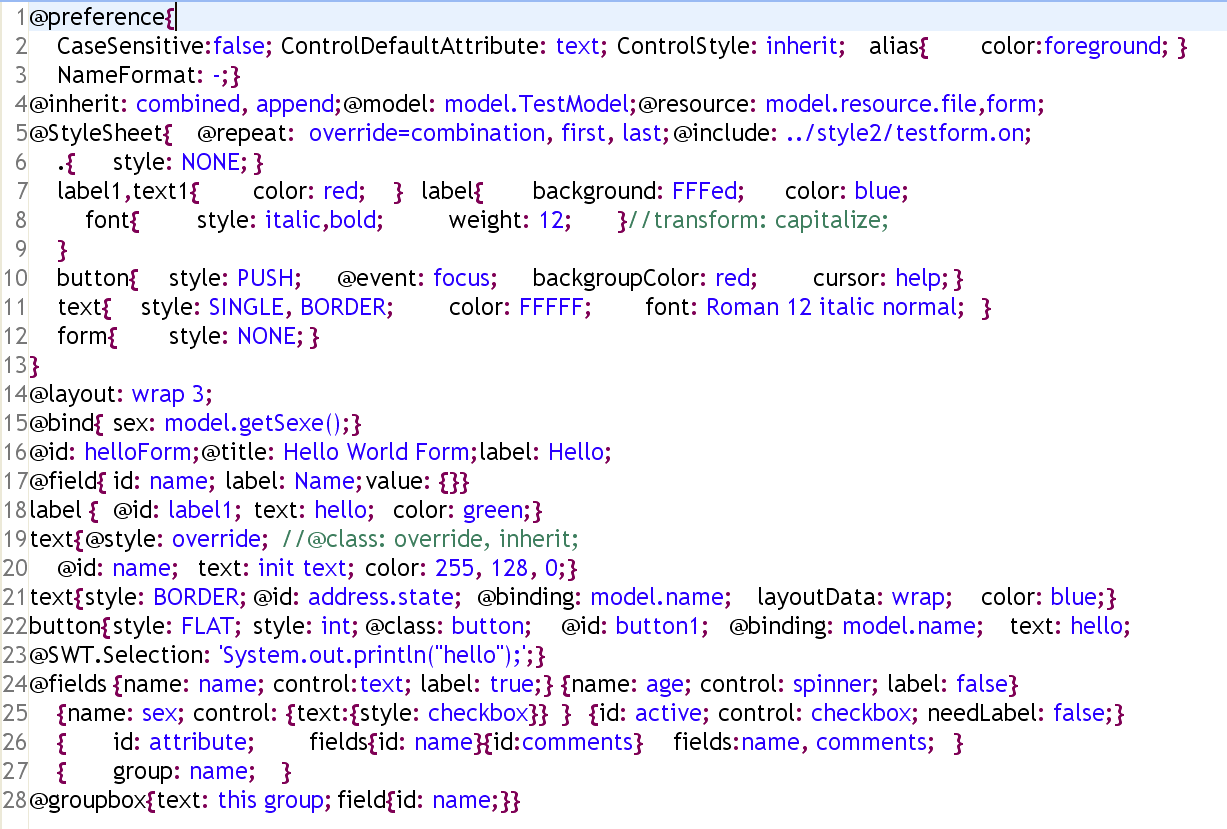

form.on.bmp : Image of form.on file compact version in the editor;
from.on.swtform.bmp: Image of the later test application form with mispelled file name J
and: form.on text;
and: form.on simple unit test
}
the form definition: form.on
@preference{
CaseSensitive:false;
ControlDefaultAttribute: text;
ControlStyle: inherit;
alias{
color:foreground;
}
NameFormat: -;
}
@inherit: combined, append;
@model: com.argaprict.model.TestModel;
@resource: model.resource.file,form;
@StyleSheet{
@repeat: override=combination, first, last;
@include: ../style2/testform.on;
.{
style: NONE;
}
label1,text1{
color: red;
}
label{
background: FFFed;
color: blue;
font{
style: italic,bold;
weight: 12;
}
//transform: capitalize;
}
button{
style: PUSH;
@event: focus;
backgroupColor: red;
cursor: help;
}
text{
style: SINGLE, BORDER;
color: FFFFF;
font: Roman 12 italic normal;
}
form{
style: NONE;
}
}
@layout: wrap 3;
@bind{
sex: model.getSexe();
}
@id: helloForm;
@title: Hello World Form;
label: Hello;
@field{
id: name;
label: Name;
value: {}
}
label {
@id: label1;
text: hello;
color: green;
}
text{
@style: override;
//@class: override, inherit;
@id: name;
text: init text;
color: 255, 128, 0;
}
text{
style: BORDER;
@id: address.state;
@binding:
model.name;
layoutData: wrap;
color: blue;
}
button{
style: FLAT;
style: int;
@class: button;
@id: button1;
@binding:
model.name;
text: hello;
@SWT.Selection: 'System.out.println("hello");';
}
@fields
{name: name; control:text; label: true;}
{name: age; control: spinner; label: false}
{name: sex; control: {text:{style: checkbox}} }
{id: active; control: checkbox; needLabel: false;}
{
id: attribute;
fields{id: name}{id:comments}
fields:name, comments;
}
{
group: name;
}
@groupbox{text: this group;
field{id: name;}
}
a test:
public class FormBuilderTest {
ONObject root;
boolean block;
DefaultOrganization model = new DefaultOrganization();
@Before
public void setupClass() throws Exception {
root = ON.from(new File("resource/onforms/form.on"));
}
@Test
public void testForm1_0() {
block = true;
testForm1();
}
@After
public void tearDown() {
System.err.println(model.getAddress().getState());
}
private void testForm1() {
ApplicationWindow window = new ApplicationWindow(new Shell()) {
Form form;
FormBuilder builder = new FormBuilder(root);
@Override
protected void configureShell(Shell shell) {
super.configureShell(shell);
shell.setText(FormBuilderTest.this.getClass().getSimpleName());
}
@Override
protected Control createContents(final Composite parent) {
Composite client = new Composite(parent, SWT.NONE);
client.setLayout(new MigLayout("wrap 2", "fill"));
form = new SWTForm(client);
builder.build(form);
assertEquals(Button.class, form.getWidget("button1").getClass());
assertNotNull(form.getWidget("label1"));
assertNotNull(form.getWidget("name"));
assertEquals("init text", ((Text) form.getWidget("name")).getText());
assertNotNull(form.getWidget("address.state"));
assertEquals("
model.name", form.getWidget("address.state").getData("@binding"));
Button button = form.getWidget("button1");
button.addListener(SWT.Selection, new Listener() {
@Override
public void handleEvent(Event event) {
model.setName("ON world");
model.getAddress().setState("FUJIAN");
form.bind(SWTObservables.getRealm(parent.getDisplay()), model);
System.err.println(model.getName());
}
});
return client;
}
};
window.setBlockOnOpen(block);
window.open();
}
@Test
public void testForm1_again1() {
testForm1();
}
}
Attachment:
Description: Windows bitmap
Attachment:
Description: Windows bitmap
