Re: [cdt-dev] CMainTab ui

[Doug Schaefer <dschaefer@xxxxxxx>]

I'm certainly interested in how other vendors organize their launch delegates (mode/config type) so we can make sure the launch bar, which features modes and hides config types, works for them. Is Attach and Core debugging even something your users would want to do from there since they really should be initiated from a process list for Attach and a core file for Core.

Doug.

From: Alena Laskavaia <elaskavaia.cdt@xxxxxxxxx>
Date: Wed Oct 29 2014 19:56:38 GMT-0400 (EDT)
To: CDT General developers list. <cdt-dev@xxxxxxxxxxx>
Subject: Re: [cdt-dev] CMainTab ui

Yes they should have their own tabs, because tab like Arguments has no application to Core file debugging for example. I am not sure if base cdt does this now or not.

But regarding modes (i.e. have attach mode) we tried that before and failed. Because debuger is not only thing you can attach, if you use modes to represent tool also (like profile),

then how to do you represent profile-attach combo (short of multiplying modes)? Platform tried to come up with multi-modes to solve this specific issues, but it failed miserably. Current implementation
stores mode combination in LC itself, which makes whole mode concept useless.

On Wed, Oct 29, 2014 at 6:18 PM, Doug Schaefer <dschaefer@xxxxxxx> wrote:

Yeah, I'm 100% sure these don't make sense. Both of these modes should have their own launch delegates to manage the distince ways in which they launch. The should also have their own Tabs that control options specific to them.

Oh, yeah, and I guess I should point out that they should be different launch modes.

It all becomes more obvious when you use the launch bar for launching.

Doug.

From: Marc Khouzam <marc.khouzam@xxxxxxxxxxxx>
Date: Wed Oct 29 2014 12:35:49 GMT-0400 (EDT)
To: 'CDT General developers list.' <cdt-dev@xxxxxxxxxxx>
Subject: Re: [cdt-dev] CMainTab ui

Another good point.

This makes sense for CDT itself and I would like to see it there.

If you provide the change for CDT, I’ll review it and everyone’s life

will become better J



From: cdt-dev-bounces@xxxxxxxxxxx [mailto:cdt-dev-bounces@xxxxxxxxxxx] On Behalf Of Oberhuber, Martin
Sent: Wednesday, October 29, 2014 11:57 AM
To: elaskavaia.cdt@xxxxxxxxx; CDT General developers list.
Subject: Re: [cdt-dev] CMainTab ui



Hi all,



It’s interesting that I stumbled over CMainTab & Build-before-launch just today in some slightly different context – good to have that discussion right now J



I found that the “Build (if required) before launching” group is visible in the “Attach” and “PostMortem” launches as well.

Now I’m 99.9% sure that building a project before analyzing a coredump does not make sense.

And I am 80% sure that building a project before attaching does not make sense.



Is there a way we could get the entire “Build before launch” section hidden in our product ?

Or have it moved to a separate tab such that the main tab is focused on what’s really relevant ?



Thanks,

Martin

--

Martin Oberhuber, SMTS / Product Owner – Development Tools, Wind River

direct +43.662.457915.85  fax +43.662.457915.6



From: cdt-dev-bounces@xxxxxxxxxxx [mailto:cdt-dev-bounces@xxxxxxxxxxx] On Behalf Of Alena Laskavaia
Sent: Wednesday, October 22, 2014 3:57 PM
To: CDT General developers list.
Subject: [cdt-dev] CMainTab ui



I would like to get rid of extra checkbox in CMainTab ui for build config selector

called "Select configuration using 'C/C++ Application'" and move it to Combo instead

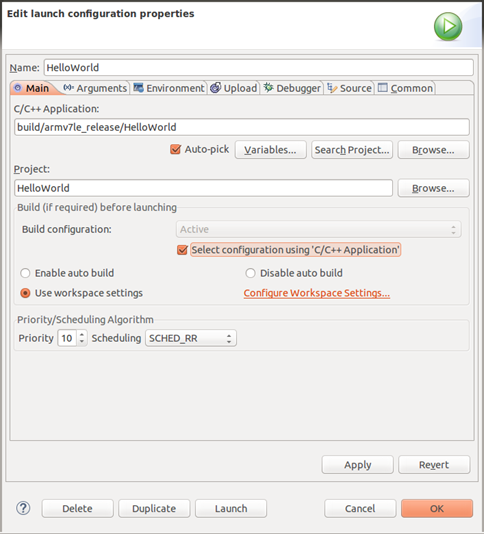

This is how it looks now

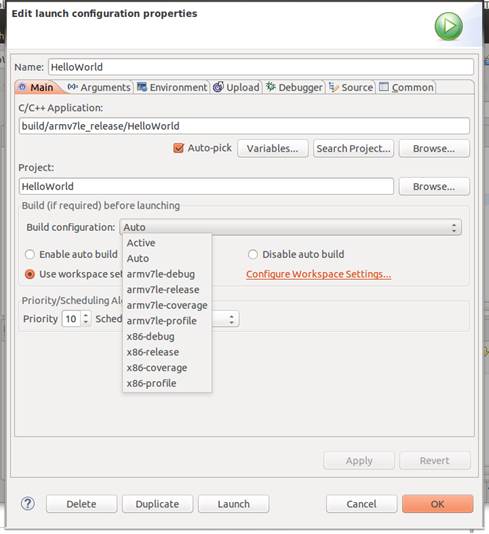

What I am proposing is this:

So "Auto" in this case is same choice as previous checkbox but it uses less space
and less confusing

It also by discretion of the launch config delegate to interpret this value and pick

configuration based on some other logic (rather then application path only)

Thoughts?

(Note: this button is API unfortunately, so I am planning to keep it but make invisible,
programmatic logic of enabling/disabling it will be supported)

​

​
