Re: [cdt-dev] Enhancement proposal for register handling
|
Hi,
FYI, the proposal below has been implemented and pushed to
master. You are welcomed to
try it and give feedback.

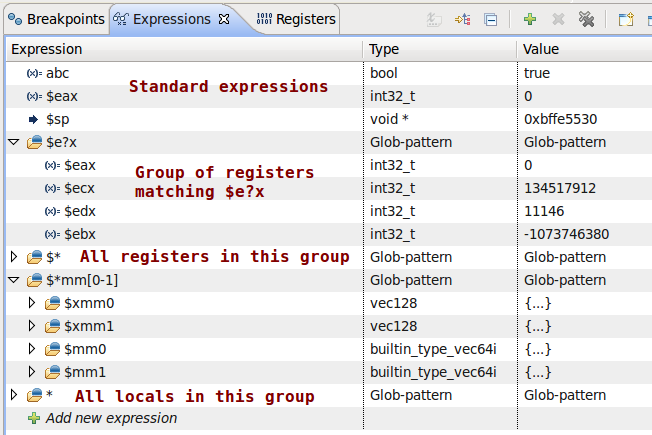

Note that the solution went a bit further than the
proposal, where the Expressions view
not only supports glob-patterns but also comma-separated
lists of expressions e.g., $eax, myvar, $$s*
See the New&Noteworthy for the short
description:
BR,
Marc
Hello,
I would like to
propose an enhancement to the Expressions view
for CDT Debug.
We are focusing on the
Juno release right
now, but since we discussed the idea in the CDT monthly call, I'm sending this proposal
now.
==
Currently, the
Registers view for CDT/GDB shows all registers in a flat list. For
targets with a large number of
registers
this is not very
user-friendly.
I propose to support
pattern-matching within the Expressions view to allow users to easily create
groups of
registers. For example:
$* would
display all registers
$st[0-5] would show $st0, $st1 , ...
$st5
The user would simply type the _expression_ in the
"Add new _expression_" box as she would
for
any other
_expression_.
Although this
feature is focusing
on registers (only
_expression_s starting with
$ will allow patterns)
it may be a nice
enhancement to extend this to other expressions. If that was also
supported, a user
could do such things
as create an _expression_ 'myArray[20-120] to only show a subset of an array;
many
other examples can be
imagined as well.
With such
possibilities in mind, the prototype does allow for the
_expression_: * which will
automatically
show all local variables and arguments of the selected stack
frame.
Comments and suggestions are
very welcomed.
Thanks
Marc
