[bpel-dev] Switch orientation feature / readable handler layout
|
Hi all,
we have been working on a feature that allows to switch the orientation of
a BPEL Process from (normally) top-to-bottom to left-to-right and vice
versa.

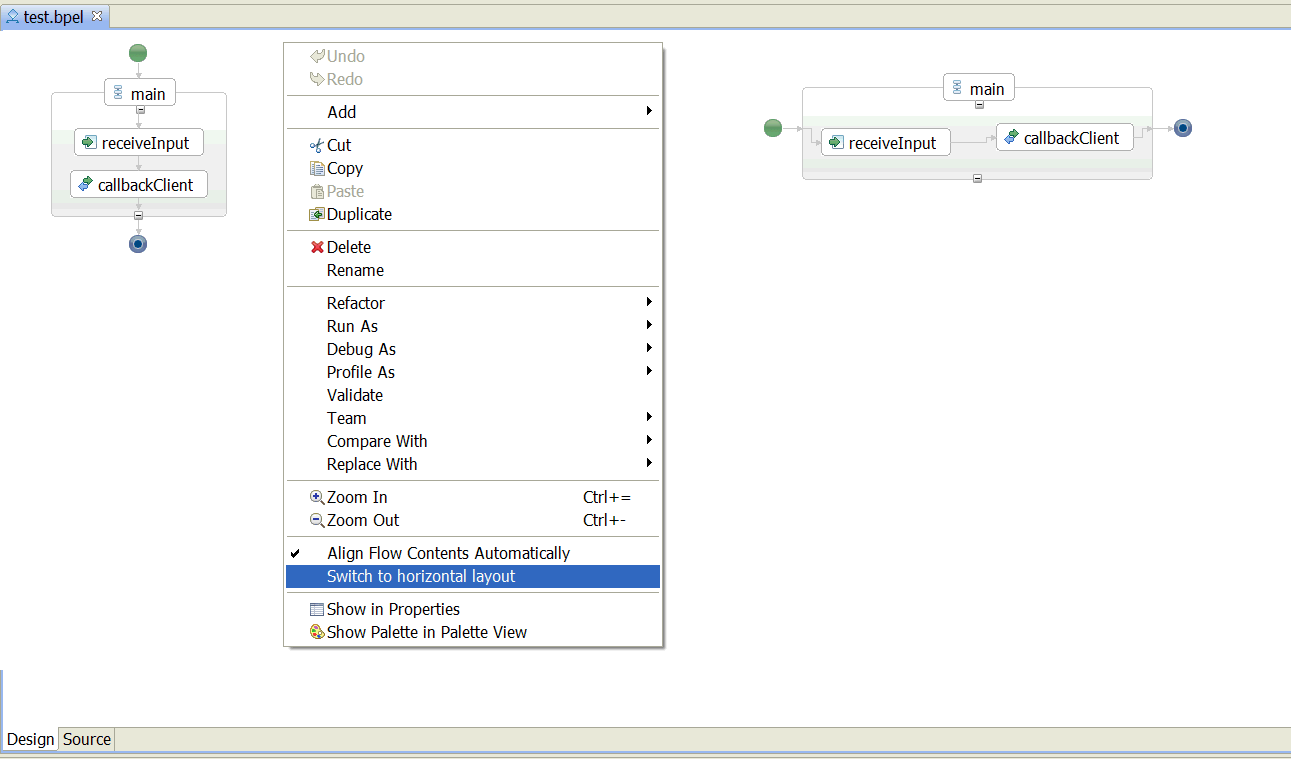

It just gives you a right-mouse action that allows to do trigger the
orientation switch
(Embedded image moved to file: pic10170.gif)

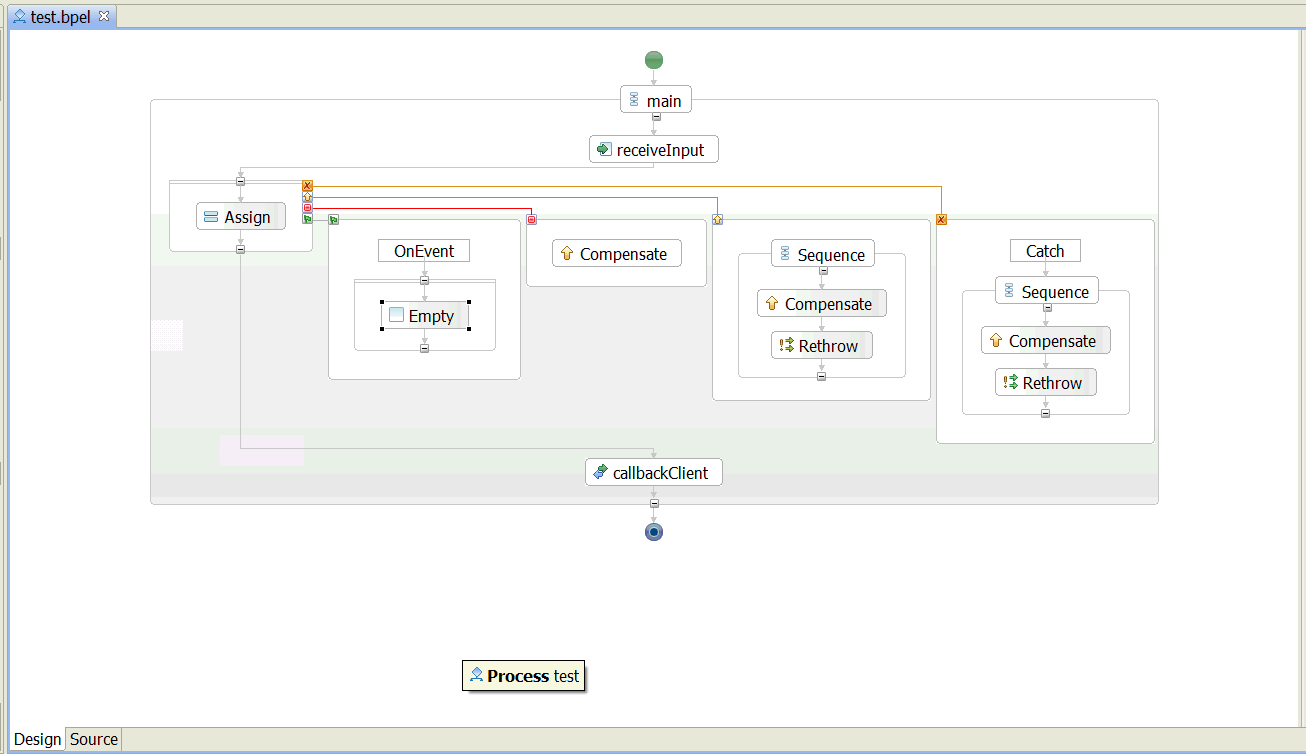

A second feature that got released together with this is that we made the
handlers being shown in a more "readable" fashion (such that the
association finally becomes clear) ...
(Embedded image moved to file: pic28128.gif)
Thanks to Andreas for providing these fixes! Enjoy!
Cheers,
Simon
