Part+Visuals [message #1795097]

Fri, 14 September 2018 13:45

Frank Benoit

Messages: 179
Registered: July 2009

Senior Member

Hi,

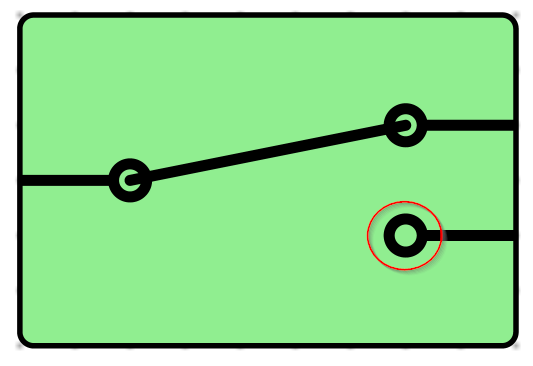

i want to build a switch component, that can have 2 or more positions.
In the end, the user shall be able to
- directly hover over the position, he wants to activate and click to do it
- or hover over the remaining body , on click the position is toggled/incremented.

index.php/fa/33891/0/

Now my question is, how shall i partition this?

one content part for the whole switch and 2-N visualparts for the clickable positions?
One visual for the switch and also one for the position (only the circle) and another visual that draws the line?

What is the recommended design here?

regards
Frank

Attachment: 2018-09-14 15_39_05-Block Diagram.png
(Size: 12.85KB, Downloaded 400 times)

Report message to a moderator

Re: Part+Visuals [message #1795190 is a reply to message #1795097]

Tue, 18 September 2018 07:19

Frank Benoit

Messages: 179
Registered: July 2009

Senior Member

I implemented this now with 3 parts and 2 visuals

class SwitchNodePart extends AbstractContentPart<Group>
groups the 2 other parts.

class SwitchBkgdNodePart extends AbstractContentPart<SwitchBkgdVisual>
Draws the background and handles the body hover and click

class SwitchSelectNodePart extends AbstractContentPart<SwitchSelectVisual>
draws the circles and as well implements hover and click

This works so far. I can implement the hovering and the click changes.
My questions refined:

1.
However I wonder if the child parts need to be content-parts.
They do not need to have new model parts. Could they just extend AbstractVisualPart?

2.
Can i have only 2 part classes?
The background drawing one having children for the select circles?
I encountered problems and concluded that only a "Group" node can have childs.
Is this correct?

Frank

Report message to a moderator

Re: Part+Visuals [message #1802119 is a reply to message #1795190]

Fri, 01 February 2019 14:36

Matthias Wienand

Messages: 230
Registered: March 2015

Senior Member

Hi Frank,

I believe your implementation should be fine so far :-)

1) Maybe the part abstraction is cumbersome here so you might want to implement a specific JavaFX visual instead. You could also provide a gesture if complicated interaction is desired (and troublesome to implement via clickdrag, and other default gestures).

Using a mix of content-parts and non-content-parts should be possible. However, I have no experience with such a setup, and the default synchronisation mechanism will only construct parts based-on content-children and content-anchorages.

2) Every JavaFX Parent can have children. Some parent nodes allow the addition and removal of children, e.g. Group or Pane, while other parent nodes maintain their children only internally.

Group is a good default. In some cases, I believe, Region/Pane can also be a very nice "base" visual due to CSS styling options.

W.r.t. two part classes: You can have a transformation between your actual model and the "content-children" and "content-anchorages" reported by the content-parts. Therefore, you can always "split" contents across multiple parts. This is done by Zest, for example, for the edge labels.

Best regards,
Matthias

Report message to a moderator

Re: Part+Visuals [message #1802126 is a reply to message #1802119]

Fri, 01 February 2019 15:32

João Pedro

Messages: 52
Registered: December 2014

Member

Frank Benoit, would you be kind enough to share part of your code? I'm trying to group 2 visuals (which then will be part of the parent Part) and I'm having difficulties understanding what to do.

Thanks ;)

Report message to a moderator

Re: Part+Visuals [message #1802276 is a reply to message #1802126]

Tue, 05 February 2019 17:50

João Pedro

Messages: 52
Registered: December 2014

Member

@Matthias In this case, what shall one do with the doCreateVisual() function?

@Override
	protected Group doCreateVisual() {
		// the visual is just a container for our child visuals (model and io of the models)
		return new Group();
	}

Report message to a moderator

Re: Part+Visuals [message #1802905 is a reply to message #1802276]

Mon, 18 February 2019 18:55

Matthias Wienand

Messages: 230
Registered: March 2015

Senior Member

Hi Joao,

the implementation of doCreateVisual() that you have given does look fine to me.

However, when your parent part should have children, then you need to implement doAddChildVisual() and doRemoveChildVisual() with logic similar to group.getChildren.add(...) and .remove(...). If you want to be able to create/delete via default CreationPolicy and DeletionPolicy, then you also need to implement doAddContentChild() and doRemoveContentChild(), respectively.

Moreover, the part needs to announce its content children via doGetContentChildren() so that controllers for these will be created during content-sync (same with anchorages, doAttachToAnchorageVisual(), doAttachToContentAnchorage(), etc.).

However, if you just want to have a complex visual that does not need to be split w.r.t. its controller(s), then you can simply create a complex visual with a single controller (part).

h2h,
Matthias

Report message to a moderator
