| Is it possible to create a connection before its source and target elements are created? [message #94863] |
Mon, 22 January 2007 04:14  |
Eclipse User |
|
|
|
Originally posted by: xiaoxiaoleemin.gmail.com
hi,everyone

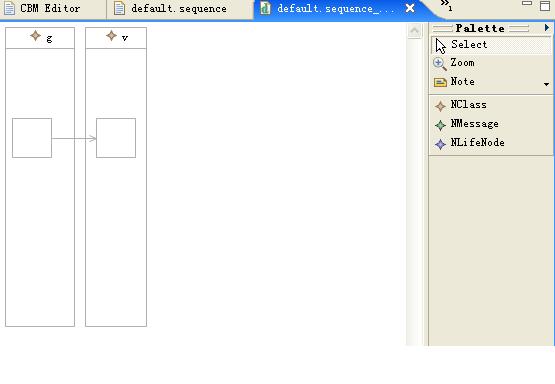

Now I have such an application like this(please see the attachement):
the biggest rectangle on the canvas is a NClass ;
the rectangle in the compartment of NClass is a NLifeNode;
the connection from one NLifeNode to another one is a NMessage.
In the model, I define the source and target of the connection(NMessage)
are NLifeNodes, so only when the mouse is over the NLifeNode, the creation
of a NMessage is enabled.
And now I wonder if such function can be possible: When I move the mouse
on the compartment of NClass(Now no NLifeNode is created), the creation of a
connection(NMessage) is enabled, and when I drag the mouse from point A in
one compartment to point B in another compartment, a connection is creation
from A to B, and at the same time, two NLifeNodes at point A and point B
are created too.
If it is possible, what should I do to achieve it? Should I install any
edit policy or modify any code?
Best wishes:)
Attachment: a.JPG
(Size: 17.89KB, Downloaded 90 times)
|
|
| |
| Re: Is it possible to create a connection before its source and target elements are created? [message #96022 is a reply to message #95129] |
Wed, 24 January 2007 12:24  |
| Eclipse User |
|
|
|
Originally posted by: xiaoxiaoleemin.gmail.com
hi, Alex:
thank you for the tips.
I have tried to modify the NClassItemSemanticEditPolicy class according
to the NLifeNodeItemSemanticEditPolicy class, and now I have made some
progress, but have not solve the problem totally.
The modification I made is as follows:
(1)by adding the getCreateRelationshipCommand, creation of a NMessage
connection is enable when the mouse moves on the NClass.
protected Command getCreateRelationshipCommand(CreateRelationshipRequest
req) {
if (SequenceElementTypes.NMessage_4001 == req.getElementType()) {
return req.getTarget() == null ?
getCreateStartOutgoingNMessage4001Command(req)
: getCreateCompleteIncomingNMessage4001Command(req);
}
return super.getCreateRelationshipCommand(req);
}
(2) add the method getCreateStartOutgoingNMessage4001Command(), and
getCreateCompleteIncomingNMessage4001Command(), the former one is the same
as that of the NLifeNodeItemSemanticEditPolicy, just return a new Command,
and in the later one, I made such modifications
protected Command getCreateCompleteIncomingNMessage4001Command(
CreateRelationshipRequest req) {
//here, both getSource() and getTarget() return a NClass object, so I delete
the checking code.
//if (!(req.getSource() instanceof NLifeNode)) {
// return UnexecutableCommand.INSTANCE;
// }
//here, I create two NLifeNode object, and set the source and target of the
request to these newly
//created NLifeNode respectively
EObject srcContainer = null;
EObject destContainer = null;
if(!req.getSource().equals(req.getTarget())) //get the real source and
target of the request
{
final NPackage element = (NPackage) getRelationshipContainer(req
.getSource(), NPackagePackage.eINSTANCE.getNPackage(), req
.getElementType());
if (element == null) {
return UnexecutableCommand.INSTANCE;
}
srcContainer = req.getSource();//now the source of the request is a
NClass, and I should create a NLifeNode in it.
destContainer = req.getTarget();
NLifeNode firstLifeNode = NPackageFactory.eINSTANCE.createNLifeNode();
NLifeNode secondLifeNode = NPackageFactory.eINSTANCE.createNLifeNode();
TransactionalEditingDomain domain =
TransactionUntil.getEditingDomain(getHost().getModel());
CreateChildCommand firstCommand = new CreateChildCommand(domain,
srcContainer, NPackagePackage.eINSTANCE.getNClass_TimeNodes(),
firstLifeNode, null);
CreateChildCommand secondCommand = new CreateChildCommand(domain,
destContainer, NPackagePackage.eINSTANCE.getNClass_TimeNodes(),
secondLifeNode, null);
firstCommand.execute();
secondCommand.execute();
req.setSource(firstLifeNode);
req.setTarget(secondLifeNode);
if (req.getContainmentFeature() == null) {
req.setContainmentFeature(NPackagePackage.eINSTANCE
.getNPackage_Messages());
}
return getMSLWrapper(new CreateIncomingNMessage4001Command(req) {
protected EObject getElementToEdit() {
return element;
}
});
}
else return null;
}
(4) Just the same as NLifeNodeItemSemanticEditPolicy, an inner class
CreateIncomingNMessage4001Command is created here.
I think the key point is before creating the
CreateIncomingNMessage4001Command, the parameter passed to it (Req) should
be set correctly. The previous source and target object of the request is
NClass( I made it by adding the getCreateRelationshipCommand), now it should
be set to two newly created NLifeNode in the previous source and target
NClass respectively. I do this job using the CreateChildCommand,.
Now if I create a NMessage between two NClass, when I push the "save"
button, an error saying "the newly created NLifeNode can't be saved because
it is not in a resource set" occurred. When debugging, I found these two
commands are not executed correctly, so the NLifeNodes are not created
correctly. I don't know whether the EMF command can be executed here.
I also try the GMF command CreateElementCommand instead of
CreateChildCommand , but I find it impossible to execute a
TransactionalCommand immediately(because only after execution of the
command, can the NLifeNode be really created, then I call the setSource()
and setTarget() of the req). When I call the execute() method of
CreateElementCommand directly, an error "Cannot activate read/write
transaction in read-only transaction context" happened, So I put the
execution code of these two CreateElementCommand in a TransactionalCommand,
then when should these TransactionalCommand execute?...
