The JTS TestBuilder - a Multitool for Geometry
Early in the development of the JTS Topology Suite, it became apparent there was a need to easily create and view geometric data, as well as run JTS geometry algorithms and inspect the results. This led to the development of the JTS TestBuilder application, a graphical user interface for interacting with JTS in a visual way. (A secondary motive was to explore how well the at-that-time new Swing and Java2D APIs supported rendering geometry. This experience led to the development of the JUMP Unified Mapping Platform - but that's another story.) After many years of development, the TestBuilder has become a full-featured multitool for working with geometry.

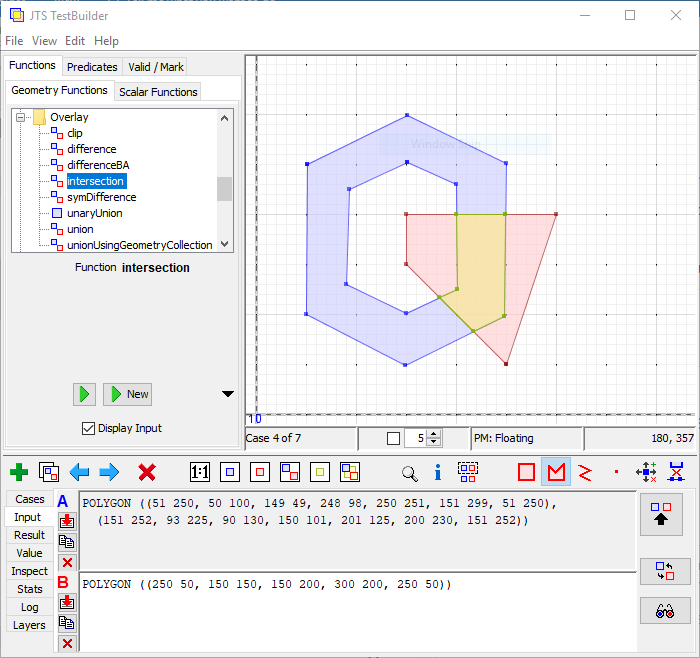

The JTS TestBuilder user interface
The TestBuilder is designed around the concept of Test Cases. A test case has one or two input geometries (called A and B). Many different kinds of operations can be performed on inputs, producing either geometric or scalar results. Test cases can be created by entering input geometry, loading a file in JTS TestRunner XML format, or by copying existing cases.
Geometry Support
Geometry can be created by manual drawing, using the Rectangle, Polygon, LineString and Point tools. Drawing tools support placing individual vertices by clicking or dragging to create "stream digitized" linework. Geometry can be entered by pasting textual data in the formats supported by JTS (such as WKT, WKB Hex, GML and GeoJSON). Data files can be loaded in any of the text formats or the venerable but still-common ESRI shapefiles. Spatial editing tools allow modifying geometry linework and vertices. Input geometry is visible in the spatial view, and also as WKT in the text views. The Inspector view shows a detailed view of the hierarchical structure of geometry, including components, line segments, and vertices, along with indices and metrics of counts, area, and length.

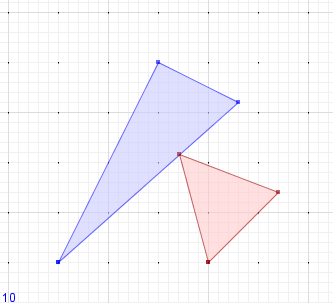

Information about geometry structure and topology can be graphically depicted using styling options. Styles include showing vertices, labeling line segments with their positional index, and displaying segment direction arrows. To aid in distinguishing polygonal components polygon fill can be varied using a few different strategies. A useful aid for visualization of very small differences in geometry linework is the RevealTopology mode, which "stretches" nearby vertices and line segments. The display can be saved as an image, which is useful for illustrating technical discussions and issue reports.

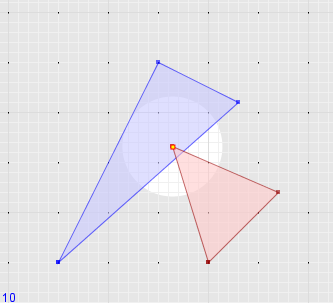

Reveal Topology mode in action
Predicates and Validation

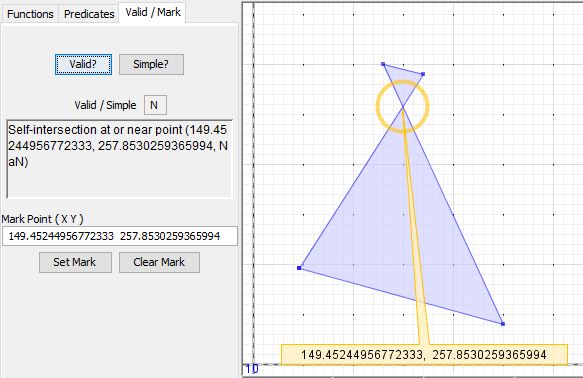

Two of the most commonly-used functions of the JTS API are computing spatial relationships (binary predicates) and performing validation of geometry topology. In the TestBuilder these are supported by dedicated user interface panels. The panels allow executing predicates and validation and present the results in an easily-understandable visual layout. In the case of validation, the nature and location of errors are indicated by graphic markers displayed on the geometry view.

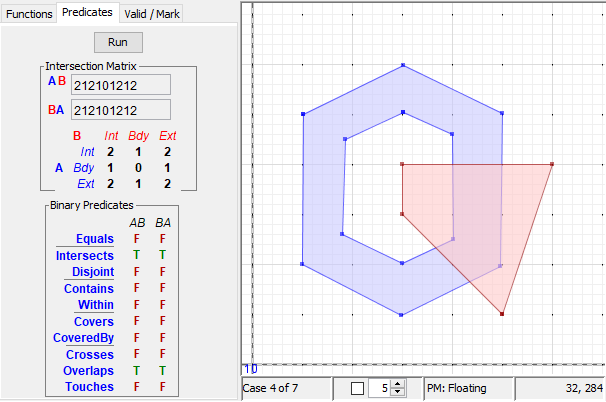

Spatial Predicate display panel
Spatial Predicate display panel
Geometry Functions
TestBuilder provides a wide variety of geometric functions which can be run on test cases. Every Geometry method is available, and many of the API classes as well. Functions are either unary or binary in terms of their geometry inputs and area categorized as Geometry-valued and Scalar-valued. Geometric results are displayed in the spatial view and as WKT. They can easily be copied to new test cases, to support executing chains of operations. Scalar results are displayed as text. Recently added to the Testbuilder are meta-functional controls, which allow executing a function on each component of an input geometry and executing functions over a sequence of parameter values. This supports performance and stress testing of geometry functionality. To allow performance evaluation, execution time and memory usage are displayed when a function is executed, and a session log is kept.

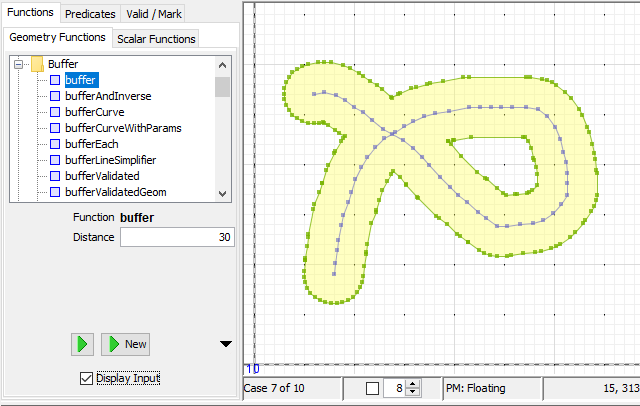

Executing a buffer function
Function Extensibility
Functions are implemented as Java class static methods and can be loaded dynamically from the TestBuilder command line. This allows using the TestBuilder as a test harness for JTS spatial functionality during development, and in fact for any Java spatial API (with conversions to JTS Geometry classes provided). The combination of geometry-valued functions and the TestBuilder visualization capability is quite versatile and provides a useful "drop-in" visual debugging tool for Java spatial development.
Future Directions
The TestBuilder continues to evolve to provide more capability for geometric manipulation and visualization. Ideas for future development include multiple layer support, more kinds of styling and symbolization, and better options for displaying custom graphical elements such as labels and titles
The TestBuilder has played an essential role in the development of JTS, and it may be worth adding to your toolbelt as well.
