What every Eclipse developer should know about EMF

This tutorial is an introduction to EMF and explains the basics of EMF. We start by showing you how to build a very simple data-centric application, including the UI, based on EMF. We explain how to define a model in EMF and generate code from it. We explore the API of the generated code, that is, how to create, navigate and modify model instances. Then we demonstrate how to build a UI based on this model using databinding. For our example we build an application to manage a bowling league, including matches and players. Later on in the tutorial, we explore the advantages of using AdapterFactories and briefly look at data management in EMF. We also included a few pointers to the most important add-on technologies for EMF.

PDF Download: This tutorial is also available for download as a PDF here.

Installation Requirements: To work through the examples, you’ll need to download and install a fresh version of the Eclipse Modeling Tools from the Eclipse Download Page.

Introduction

To answer the question, “What is EMF?” we’ll borrow the description from the EMF website:

“The EMF project is a modeling framework and code generation facility for building tools and other applications based on a structured data model. From a model specification described in XMI, EMF provides tools and runtime support to produce a set of Java classes for the model, along with a set of adapter classes that enable viewing and command-based editing of the model, and a basic editor.”

Source: http://www.eclipse.org/emf

It is worth mentioning that in addition to being a successful modeling framework, EMF has also been a stable standard for many other modeling technologies. We recommend using EMF for any structured data model you want to create in Eclipse, especially if it is stored, displayed and modified in UI’s.

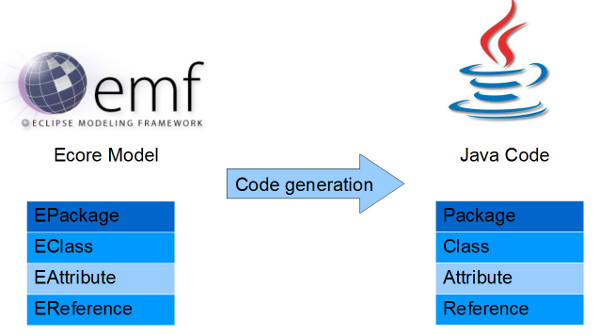

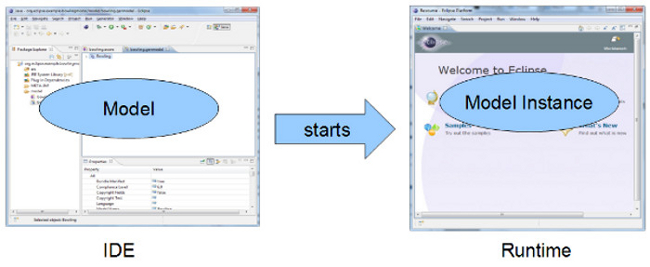

The basic EMF workflow is very pragmatic; a model is created and defined in the Ecore format, which is basically a sub-set of UML Class diagrams. From an Ecore model, you can generate Java code. Later in this tutorial we will have two running instances of Eclipse. In the first instance, the “IDE”, we will define the model and generate code from it. The second instance, the “Runtime”, will be started from the IDE and contain instances of the generated model.

Example Model

In this tutorial we will create an example model for managing a bowling league and its tournaments. A League contains an arbitrary number of Players. A Tournament consists of an arbitrary number of Matchups. Each Matchup always contains two Games. A Game is a list of frames (the score) and is assigned to a certain Player. Finally a Tournament has an Enumeration that determines the type of Tournament.

In the next section, we will show how to create and generate code from this model.

Modeling

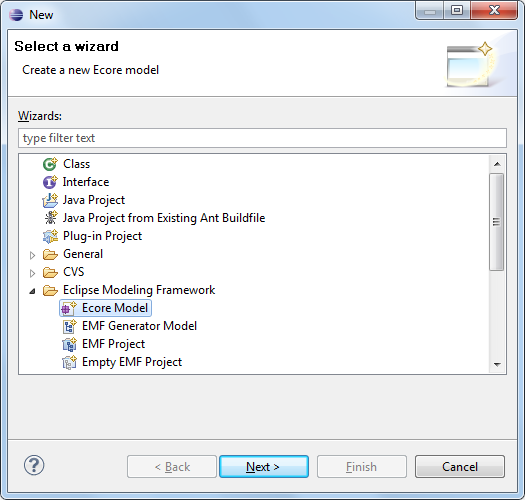

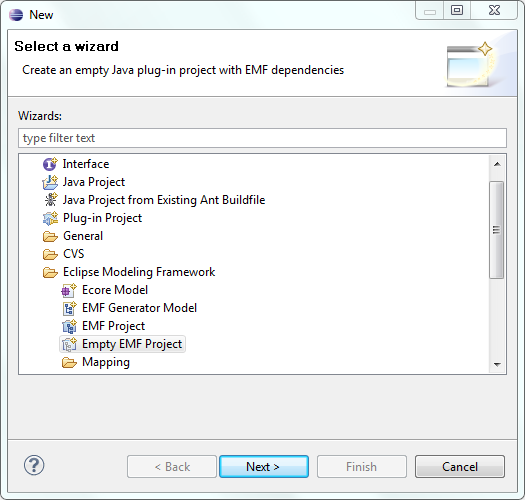

We will create our example model in EMF to generate the entity classes for our application. The first step is to create an empty modeling project in your workspace.

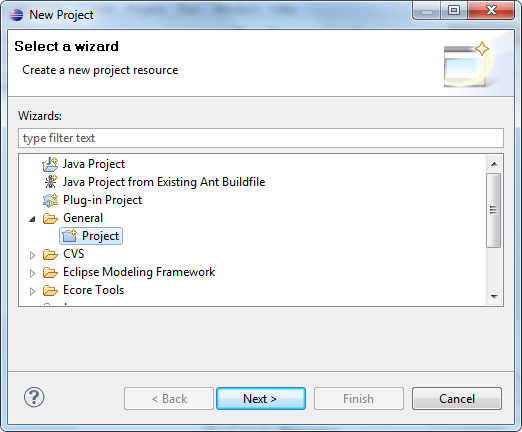

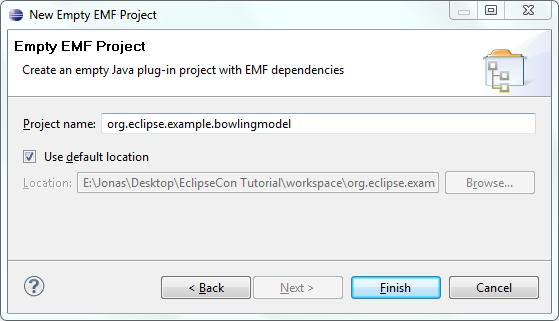

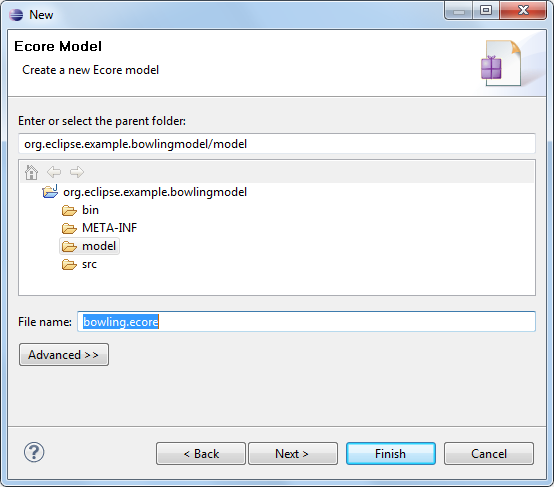

Give the project a name, e.g. “org.eclipse.example.bowlingmodel”:

The essential part of the modeling project is the model itself, defined in the format “Ecore”. Please create a new “ecore” file in the model folder in your new modeling project and give the file the name “bowling.ecore”.

Click Finish to create the model. It will open in the default Ecore editor, which allows the definition of Ecore models in a tree-based view. There are several additional options for defining Ecore models, including graphical modeling, textual modeling, Java annotations and importing from UML tools. We will stick to the default editor in this tutorial and later, briefly demonstrate the graphical editor for Ecore.

In the Ecore editor tree, you can create and delete model elements as well as modify the structure of your model via drag and drop. Properties of model elements can be modified in a second view, which opens up on double-click or right-click → “Open Properties View”.

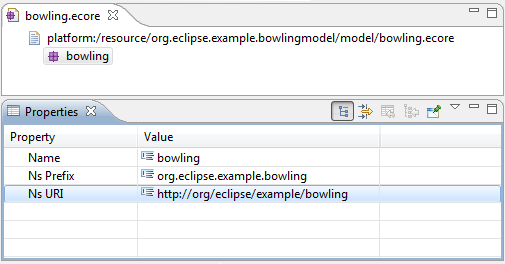

You’ll need to give the root package of your new model a name and an URI. This is used to identify the model later on. Name the package “bowling”, set the Ns Prefix to “org.eclipse.example.bowling” and the Ns URI to “http://org/eclipse/example/bowling ”.

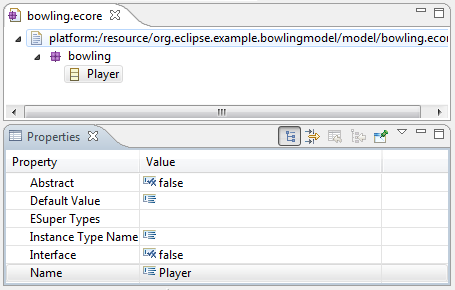

Now we can define our model elements as children of the root package. Right-click on the root package, create a new EClass and name it Player.

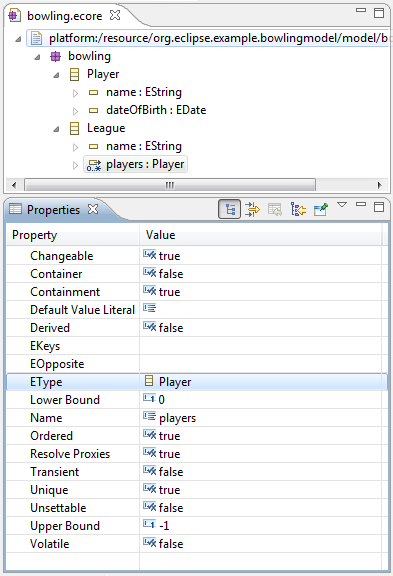

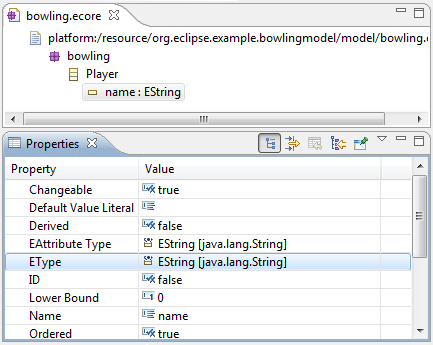

From the context menu of an EClass, you can add EAttributes and EReferences to it. Create an EAttribute and open the Property view for it. The properties of an EAttribute define its name, its data-type and other properties, which we will cover later in the tutorial. Add an EAttribute to the Player, name it “name” and assign the EType “EString” (java.lang.string). Repeat this step and add a second EAttribute named “dateOfBirth” of type “EDate”. The convention we’ll use here is that all class names start with an upper case letter, attributes and references start with a lower case letter.

EMF models usually build up a structured hierarchy, that is, model element instances. For example, a Player is contained in a specific container object. This provides a tree structure, which is useful for navigation and serialization (e.g. XML). This tree structure is often referred to as a containment tree. In our model, Players are contained in a League. It is important to note that this also implies that every Player is referenced by exactly one League, and thus cannot be part of more than one League. EMF will automatically make sure that a player is not contained in more than one league. If you add a player to a second league, its reference to the original league vanishes.

Create a second EClass and name it “League”. To identify the League, also create an EString attribute called “name”. The next step is to create an EReference between League and Player by right-clicking on the League model element. Name the reference “players”. Set the EType of the reference to “Player”. As a League can contain an arbitrary number of Players, set the upper bound to “-1”, the equivalent of “many”. Finally, set the property Containment to “true”, defining the EReference to be a containment reference.

If you prefer to work with a graphical editor, you can use the built-in Ecore diagram editor. A diagram can be created by right-clicking on the Ecore file and selecting “Initialize Ecore Diagram”. We will be using the tree-based Ecore editor in this tutorial.

We can already generate code from this first model iteration, which will be shown in the next section. EMF can also generate an example editor. With this editor you can create instances of the generated model, in our case instances of Leagues and Players. This allows us to do initial testing on the model by creating instances of it. Then we can further refine and add more EAttributes and EReferences in a second iteration that will complete the model.

Code Generation

In this step, we will generate the entities from the Ecore file we have created. Note that if you need to change your model, you will be able to regenerate the entities again. EMF can deal with simple changes like adding model elements or EAttributes. If you have complex changes, like moving an attribute to another class, you will have to migrate existing instances of the model. This is supported by the EDAPT framework. (see http://www.eclipse.org/edapt/)

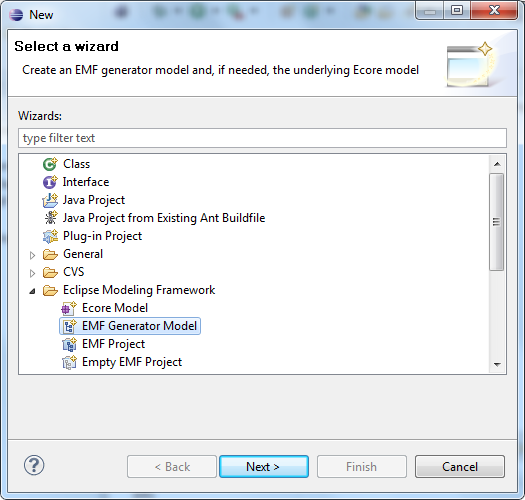

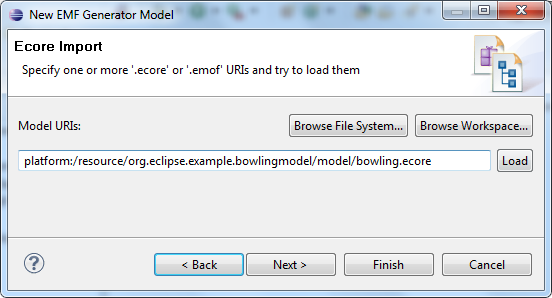

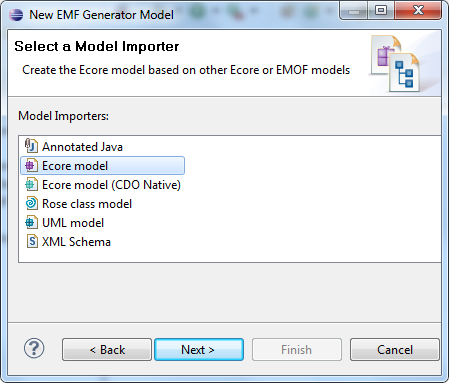

To generate entities, we first have to create a generator model file. This file allows you to configure properties for the code generation which are not part of the model itself. For example, source code is generated for the plugin and subfolder as well.

Create a new generator file called bowling.genmodel in the model folder and select our previously created Ecore as a source model.

In the root node of the generator model, you can set the properties for generating code. In the tree of the generator model, we can set properties for every generated entity. For the first code generation, we’ll use the default settings. Based on the generator model, we can now generate the source code. EMF allows you to generate a maximum of four different plugins for a defined model:

• Model: The model contains all entities, packages and factories to create instances of the model.
• Edit: The edit plugin contains providers to display a model in a UI. For example the providers offer a label for every model element, which can be used to display an entity showing an icon and a name.
• Editor: The editor plugin is a generated example editor to create and modify instances of a model.
• Test: The test plugin contains templates to write tests for a model.

To generate the plugins, right-click on the root node of the generator model and select the plugin. For our tutorial, please select “generate all”. Before we look at the generated code, let’s start the application and create an entity of our model. Right-click on the model plugin and select “Debug as → Eclipse Application”. Then, create a new empty project and a bowling model. This file will contain a serialized version of our model instance.

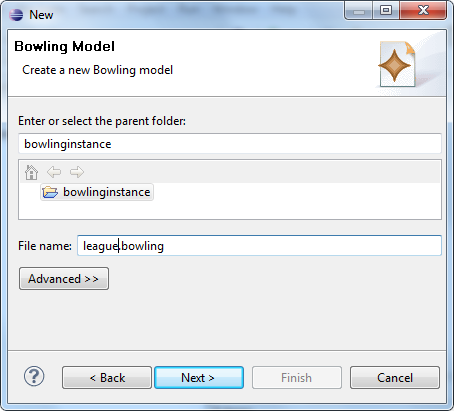

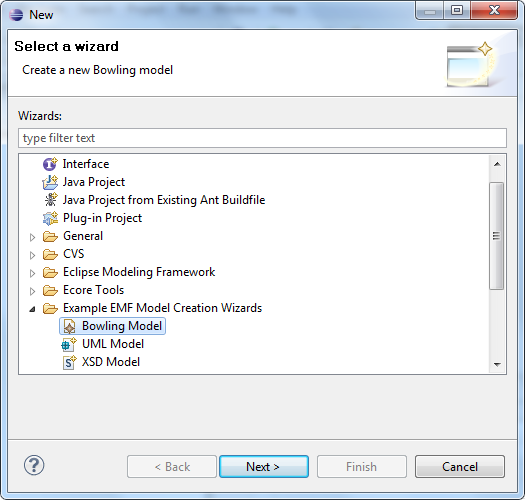

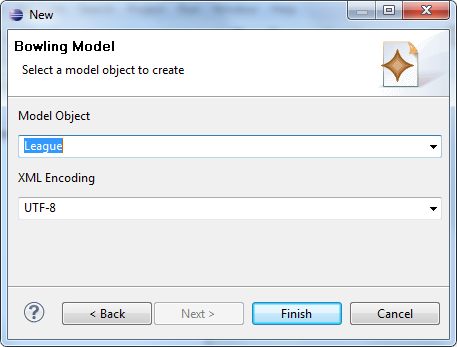

Select League as the model object. This sets the root object of the model instance we are about to create.

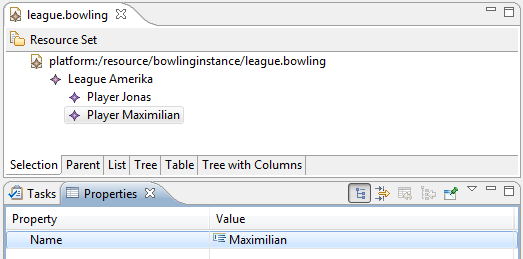

The generated editor for model instances works similarly to the Ecore editor. Model element instances can be created via a right-click and EAttributes can be modified in the properties view. Please give the League a name and create two Players. On save, all created instances are serialized in the XMI file “league.bowling”.

Model refinement

Let’s switch back to our Eclipse IDE Environment, complete the model and regenerate the source code. In this second model iteration we will add different type of EReferences, as well as EEnums and Multi-EAttributes. First, add the following classes to the bowling model:

• Tournament
• Matchup
• Game

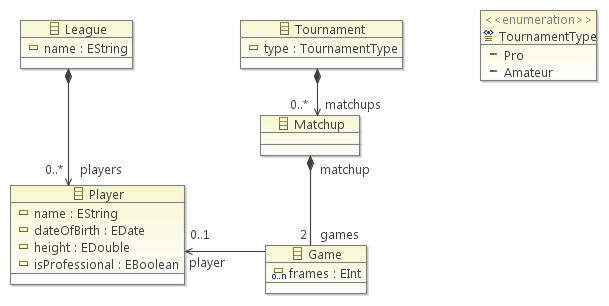

These classes model the results of bowling tournaments and build up a second tree in our model. Therefore we add containment EReferences from Tournament to Matchup and from Matchup to Game. Following the bowling rules, a Matchup consists of two Games (each from one Player). We model this by setting the upper bound and lower bound of the EReference “games” of the EClass Matchup to “2”.

We defined the EReference between Matchup and Game as bi-directional. This means that the reference can be navigated from both ends. Therefore we have to create a second EReference from Game to Matchup and bind both EReferences. EMF will take care of the bi-directional synchronization. In other words adding a matchup to a game will automatically add the game to the matchup.

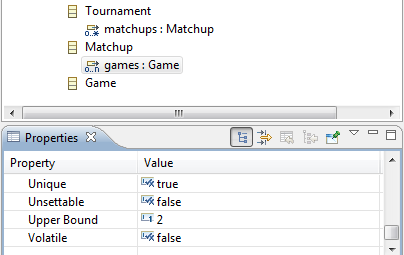

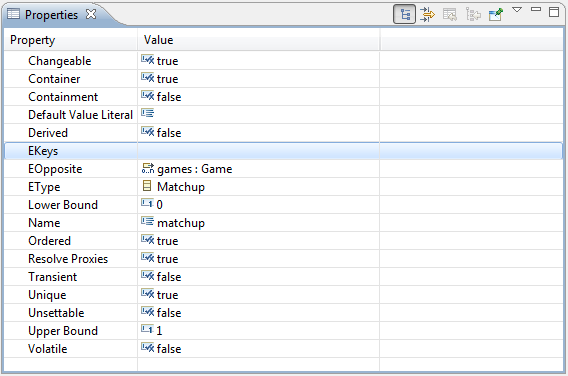

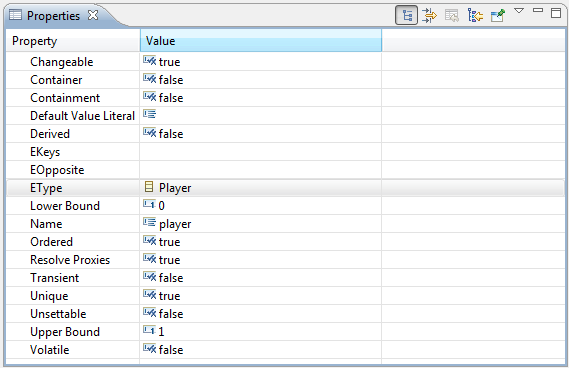

Please add an EReference to Game called “matchup” with the EType “Matchup”. By setting the EOpposite to the EReference “games”, both EReferences are coupled bi-directionally. Note that the property “Container” will automatically be set to True.

The next step is to add a cross-EReference. In contrast to containment EReferences, cross-referenced model elements do not contain each other. In our model we add a cross-referencing EReference from Game to Player named “player”. Set both container and containment properties to “false”. An arbitrary number of games can be assigned to a Player now and the Player is still contained in a League.

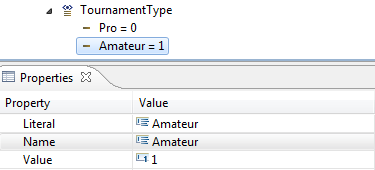

As a final mandatory step, we will create an EEnumeration for the type of tournament. A tournament can be of type “Pro” and “Amateur” in our model. Please create an EEnum by right-clicking on the root bowling model package, in the same way we created a class. Add two EEnum Literals to this EEnum.

Then, add an EAttribute to the EClass Tournament, name it “type” and set the EType to “TournamentType”.

The extended example model contains more EAttributes and EReferences to be added including all basic types and some special cases as the Multi-Integer EAttribute in Game. If you’d like, you can also model the following features:

• Player:
  • height: EDouble
  • isProfessional: EBoolean
• Game:
  • frames: EInt, UpperBound = 10

After applying complex changes to the model it is always a good idea to validate it with a right-click on the model root in the Ecore editor. Let’s do something wrong in the model and set the lower bound of the EAttribute “games” (in Matchup) to 3. As the upper bound is 2, this model doesn’t make too much sense. This will be detected by the model validation – something which is impossible in plain Java Code.

After this model refinement, we will re-generate the code to reflect our changes. Start the runtime Application again and create a second model “tournament”. Add a Matchup and two Games. To assign the Games to Players you will have to load the “league” model created earlier. Select “Load Resource” from the menu “Bowling Editor” and select the first model file. Now link the Games to the Players in the properties view.

Why is this better than writing POJOs?

You might ask “why should I use EMF instead of creating the model by writing plain POJOs?”. Without considering benefits like the generated editor for rapid testing and all the additional frameworks available for EMF, let’s look at two very simple and exemplary benefits.

Before we look at the generated code (we will do that in a minute), let`s consider the amount of code we have just produced. The Eclipse metrics plugin tells us that we have generated over 1,000 LOC, while only 150 are part of utility classes. Even very simple code is considered to be worth 1$ per LOC. So, we have earned $1,000 just by clicking some buttons ;)

In the next sections, we’ll explore the EMF API for the code we have generated.

EMF API

In this part of the tutorial, we will explore EMF’s API, including the generated code, as well as EMF’s utility classes. Let’s have a look at the generated code first.

In the model plugin from our tutorial org.eclipse.example.bowling you will find interfaces and implementations for all of the model’s entities. A look at the outline of an entity’s interface reveals that it contains getters and setters for the attributes we have defined in the model, as well as getters for the references. All entities of the generated EMF model are sub-classes of EObject. EObject contains basic functionality – for example, a change notification mechanism.

The model plugin contains factories to create model element entities. Note that the constructor of EObjects is usually not public. Please also note that factories are used by many frameworks for their functionality, e.g. deserialization. Changing these methods successfully requires some careful planning. Let’s use the factories to programmatically create some entities and use their API to modify them. We will use the pre-generated test plugin to run this example code. If you open the plugin, org.eclipse.example.bowlingmodel.test, you will find a generated test class for all of the entities of your model. By adding methods starting with “test” you can create single test cases. The test cases can be started with a right-click on the test class => “Debug As” => “JUnit Test”. Please note, that we will not really “test” our model. In this context test cases are just a very simple way of exploring and using the API of the generated classes.

In this very simple example, we’ll use the BowlingFactory to create a Matchup and a Game, adding a reference to the Matchup and checking the bi-directional update on the Game.

public void testMatchupGameRef() {
     Matchup matchup = BowlingFactory.eINSTANCE.createMatchup();
     Game game = BowlingFactory.eINSTANCE.createGame();
    matchup.getGames().add(game);
     assertEquals(game.getMatchup(), matchup);
}

The super class EObjects offers many methods to access an entity in a more generic way. As an example, we will test the containment between Matchup and Game by accessing the EContainer instead of the getMatchup() method.

public void testMatchupGameRef() {
  Matchup matchup = BowlingFactory.eINSTANCE.createMatchup();
  Game game = BowlingFactory.eINSTANCE.createGame();
  matchup.getGames().add(game);
  assertEquals(game.eContainer(), matchup);
}

EObjects offer reflective access to their attributes using the methods eSet() and eGet(). This can be useful in modifying an entity in a generic way.

public void testReflection() {
  EObject eObject = BowlingFactory.eINSTANCE.createPlayer();
   eObject.eSet(BowlingPackage.eINSTANCE.getPlayer_Name(), "Jonas");
     Player player = (Player) eObject;
     assertEquals("Jonas", player.getName());
}

Information about the available EAttributes and EReferences, as well as all additional concepts we have modeled before, can be accessed either through the EClass or through the EPackage. The following test checks whether the EReference of League is a multiplicity greater than one.

public void testReflectiveInformation() {
     League league = BowlingFactory.eINSTANCE.createLeague();
    assertTrue(league.eClass().getEAllReferences().get(0).isMany());
     assertTrue(BowlingPackage.eINSTANCE.getLeague_Players().isMany());
}

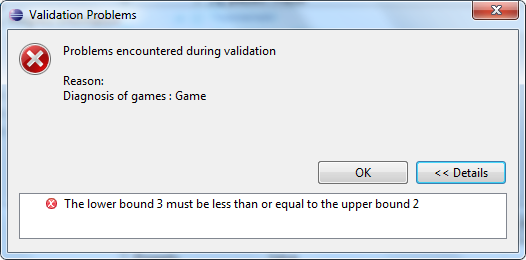

EMF also supports the validation of model instances. As an example, we can validate the model’s constraint that a matchup must always consist of two games.

public void testValidation() {
    Matchup matchup = BowlingFactory.eINSTANCE.createMatchup();
    matchup.getGames().add(BowlingFactory.eINSTANCE.createGame());
    Diagnostic validate = Diagnostician.INSTANCE.validate(matchup);
    assertEquals(Diagnostic.ERROR, validate.getSeverity());
}

Finally, EMF provides many utility classes. A very important one is EcoreUtil. It is worthwhile browsing through the available methods of EcoreUtil. We’ll use the copy method to create a copy of an EObject.

public void testCopy() {
    Player player = BowlingFactory.eINSTANCE.createPlayer();
     player.setName("Jonas");
     Player copy = EcoreUtil.copy(player);
     assertNotSame(player, copy);
     assertEquals(player.getName(), copy.getName());
}

Import intermediate Sample Solution

Before we continue with the tutorial, please import the intermediate sample solution, which can be downloaded here.

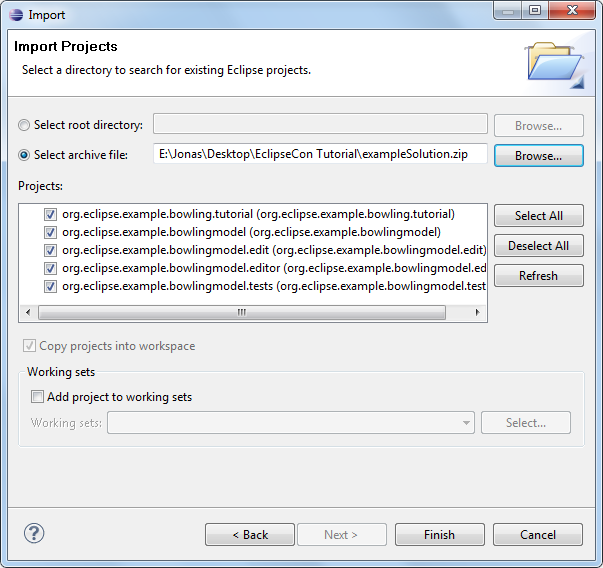

Switch to an empty workspace (File → Switch Workspace) and select “Import” → ”General” → ”Existing Projects into Workspace”. Select “EMFTutorialIntermediateSolution.zip” and import all projects.

The sample solution contains the model we have created in the first part of the tutorial and some additional classes we will need in the remainder of the tutorial.

AdapterFactories

For the next sections of the tutorial it is important to understand the concept of AdapterFactories. We will give a quick introduction and you can also go to this documentation for more information.

The basic function of AdapterFactories is to provide you with an interface that you need for a certain purpose such as a ILabelProvider needed in the UI. EMF generates a lot of these classes for you. To retrieve the right class you can use an AdapterFactory implementation of the interface you need, e.g. an AdapterFactoryLabelProvider. The AdapterFactoryLabelProvider will retrieve the generated LabelProviders for all EObjects using an AdapterFactory.

EMF Data Management

In the previous sections we have shown how to generate a structured data model with EMF. In a typical application, these data models have to be stored and likely also versioned and distributed. There are a couple of frameworks that support different use cases.

By default EMF provides the ability to serialize EObjects to XMI files. In the following example, we will load EObjects from a file and save them afterwards. EMF also offers commands to make modifications to the model. Commands can be easily undone. In the example we will load an XMI file containing a Tournament. We can add new Matchups to that Tournament and undo these changes. When we’re finished, we can save the changes back to the file.

For the tutorial, we have prepared an example dialog in the plugin org.eclipse.example.bowling.tutorial, which has been imported from the sample solution. You can open this dialog by right-clicking a file containing instances of a bowling model and select “Tutorial” → ”Open Tournament Example Dialog”. After implementing the next two sections of the tutorial, it will look like this:

In the subclass ExampleTournamentDialog, there are empty method stubs to be implemented in this tutorial. Just a note here that for the purposes of the tutorial we have focused on simplicity over perfect design. Also, everything that is not relevant for the tutorial is implemented in an abstract base class called AbstractTournamentExampleDialog.

Now you’ll need to open the class ExampleTournamentDialog. We will implement the loadContent method, which is triggered by opening the example view. The purpose of this method is to get a Tournament from the file which is then displayed in the example view. To keep it simple, we assume that the file contains a Tournament and this Tournament is the first element in the file. You can easily create a file like this with the generated example editor.

First, we create an editing domain. An editing domain manages a set of interrelated models and the commands that are run to modify them. For example, it contains the stack of all former commands. An editing domain can create a resource, which is a container for storing EObjects. Resources can be saved and loaded and contents can be added to them. In the example we get the first EObject in the resource, assume it is a tournament and make it a member of our superclass.

@Override
protected void loadContent(IFile file) throws IOException {
     // Load Tournament from file and set it with setTournament
     AdapterFactoryEditingDomain domain =
        new AdapterFactoryEditingDomain(getAdapterFactory(), new BasicCommandStack());
     resource = domain.createResource(file.getFullPath().toString());
     resource.load(null);
     EObject eObject = resource.getContents().get(0);
     setTournament((Tournament) eObject);
}

After loading the content, we will implement a save. This will be triggered by pressing OK in the dialog and will serialize the model and apply all changes to the file.

@Override
protected void save() throws IOException {
     // save changes in the file
     resource.save(null);
}

Now we want to implement the addition of a Matchup to a Tournament. We will use a command for this. First we create a Matchup using the appropriate factory. The factory, by convention, has the same name as the base package of the model. Then we create a command which adds the newly created Matchup to the Tournament that has been loaded from the resource in the previous step. Finally, we run the command on the command stack of the editing domain.

@Override
protected void addMatchup() {
     // add a new Matchup using a Command
     Matchup matchup = BowlingFactory.eINSTANCE.createMatchup();
     EditingDomain editingDomain =
        AdapterFactoryEditingDomain.getEditingDomainFor(getTournament());
     Command command = AddCommand.create(editingDomain, getTournament(),
     BowlingPackage.eINSTANCE.getTournament_Matchups(), matchup);
     editingDomain.getCommandStack().execute(command);
}

At this point, the changes will not be reflected in the dialog’s UI, but we will implement the code in the next section of the tutorial.

The next step is to implement undo. To undo the last command, all you’ll need to do is to call undo on the command stack of the editing domain.

@Override
protected void undo() {
   // Undo the last change
   AdapterFactoryEditingDomain.getEditingDomainFor(
      getTournament()).getCommandStack().undo();
}

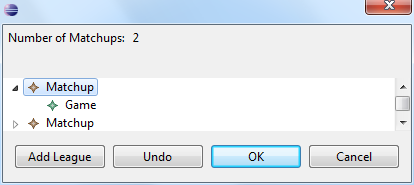

Now, start the bowling application and create a XMI file with the example editor. It should contain a Tournament and several Matchups and Games. Right-click the file and select “Tutorial” → ”Open Example Tournament View”. In this view you can add new Tournaments, undo this operation and save by clicking on “OK”. You can validate the result by opening the file in the Ecore editor. Please note again, that the UI of the View will not be updated yet, but we will also initialize the UI in the next step of the tutorial.

Additional Persistence Frameworks

There are several frameworks for storing and versioning EMF model instances. Here are three that we can recommend:

• CDO
• EMFStore
• Teneo

EMF UI

In this section we will fill the example view with two basic UI elements. First, we will bind the Label on top showing the number of Matchups in the opened Tournament to the model. We will use the notification mechanism to update the Label whenever the number of Matchups changes. Second, we will fill the TreeViewer with a list of the Matchups also displaying their Games as children. For updating the Label we will register a listener on the Tournament EObject, which is opened in the view. This listener will always be notified by the EMF runtime if there is a change in the Tournament EObject.

@Override
protected void initializeListener() {
   // initialize a listener for the Label displaying the number of Matchups
   numberOfMatchupListener = new NumberofMatchupListener();
   getTournament().eAdapters().add(numberOfMatchupListener);
}

In the second step we implement the listener itself. In the notify method, we check first whether the change was on the EReference to Matchups and therefore influences the number of Matchups. If this is the case, we update the Label via the updateNumberOfMatchups method (implemented in the AbstractTournamentExampleView).

private final class NumberofMatchupListener extends AdapterImpl {
     // Implement a listener to update the Label. Call updateNumberOfMatchups
     @Override
     public void notifyChanged(Notification msg) {
        if (msg.getFeature().equals(
              BowlingPackage.eINSTANCE.getTournament_Matchups())) {
           updateNumberOfMatchups();
        }
     super.notifyChanged(msg);
     }
}

This is how you would manually implement listeners. For creating UIs with bi-directional updates between UI elements and data-models, we recommend using data binding that is already available for EMF. In Eclipse data-binding, you can bind a certain UI element to a certain EAttribute or EReference and it will take care of bi-directional updates.

Next, we will initialize the TreeViewer to display the Matchups of the current Tournament and their Games as children. A TreeViewer needs three things to be initialized: the ContentProvider, the LabelProvider and an input. The ContentProvider defines the structure of the Tree by providing the method getChildren(). The LabelProvider is called to get an Icon and the text to be displayed for one node. The input of a TreeViewer is the invisible root element of the Tree. The elements displayed in the root of the tree are the children of that element. In our case, the input is the Tournament.

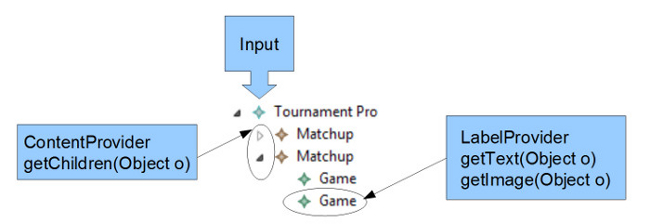

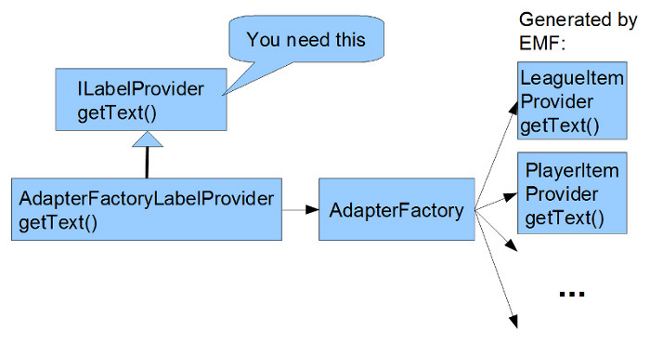

ContentProvider and especially LabelProvider usually depend on a certain EClass. EMF generates providers for several purposes including Content- and LabelProvider. We will use the AdapterFactory concept explained previously to retrieve the right provider for every element. Finally, we set the Input to the Tournament which is currently open.

@Override
protected void initializeTreeviewer(TreeViewer treeViewer) {
     // initialize a TreeViewer to show the Matchups
     // and Games of the opened Tournament
     AdapterFactoryLabelProvider labelProvider =
        new AdapterFactoryLabelProvider(getAdapterFactory());
     AdapterFactoryContentProvider contentProvider =
        new AdapterFactoryContentProvider(getAdapterFactory());
     treeViewer.setLabelProvider(labelProvider);
     treeViewer.setContentProvider(contentProvider);
     treeViewer.setInput(getTournament());
}

To test the UI features just implemented, you’ll need to re-start the bowling example application. To modify the appearance of a Label you can simply modify the ItemProvider of the respective class. Let’s modify the LabelProvider for Matchup. To modify the appearance of EObjects in the TreeViewer you can adapt the generated ItemProvider MatchupItemProvider. In the example we will show the number of Games contained in a Matchup Game. Mark the method as “generated NOT” to prevent it from being overwritten during the next generation.

/**
* This returns the label text for the adapted class.
* @generated NOT
*/
@Override
public String getText(Object object) {
   if (object instanceof Matchup) {
      EList<Game> games = ((Matchup) object).getGames();
      if (games != null) {
         return "Matchup, Games: " + games.size();
      }
   }
   return getString("_UI_Matchup_type");
}

In the running application, the new LabelProvider is displayed in the Tournament Example view as well as in the Ecore Editor:

As a last step, you should remove all listeners when closing the view. Note that LabelProvider and ContentProvider are registered listeners on the model, so you should delete them as well.

If you want to have a look at the final sample solution, please import the projects from this link.

Additional UI Frameworks

There are several frameworks for displaying data from an EMF model instance. Here are three that we recommend taking a look at:

• Extended Editing Framework
• EMF Client Platform
• Graphical Modeling Framework

Additional EMF-based Technologies

In this last section of the tutorial we’d like to give you our short-list of additional EMF-based technologies for you to explore.

• EMF Compare for comparing models
• EDAPT for migrating models
• EMF IncQuery for querying models
• XText for textual modeling (DSLs)

Conclusion

We hope you found this tutorial helpful. If you have feedback or questions, please feel free to contact us at modeling@eclipsesource.com.
